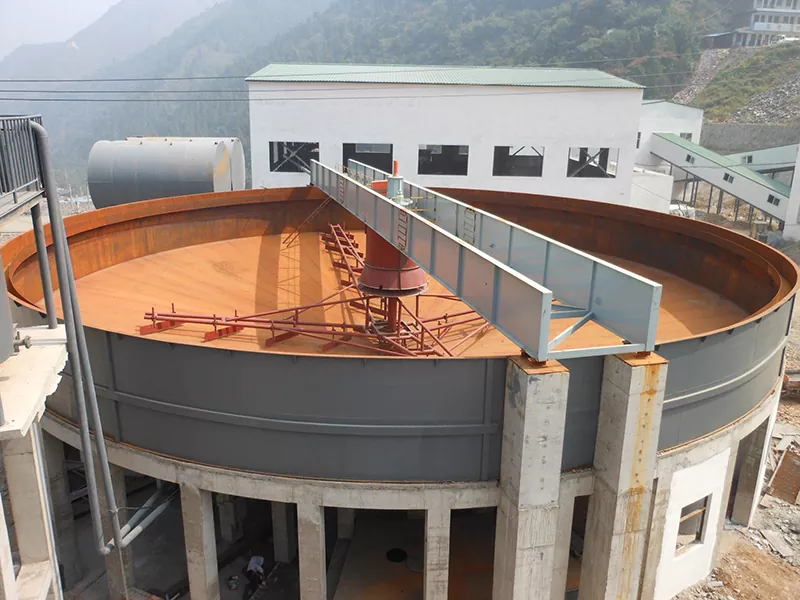

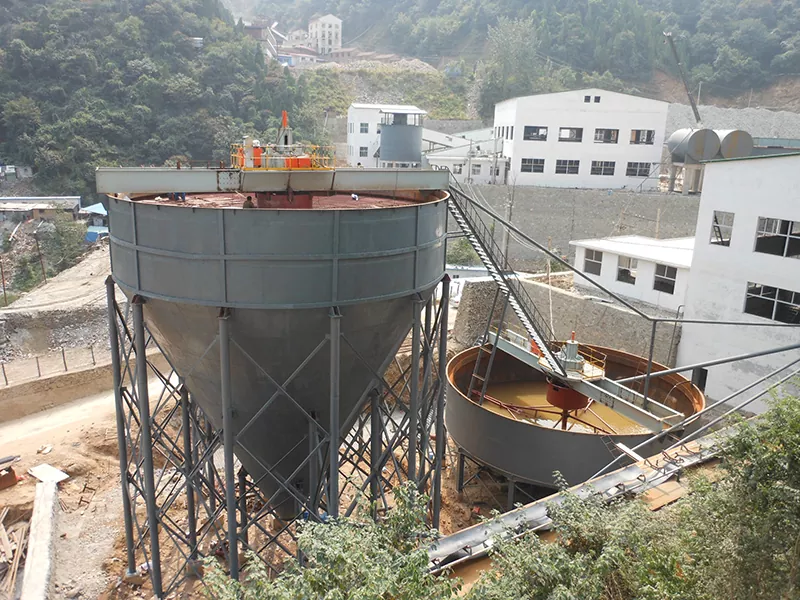

Circular High Rate Inclined Plate Thickener

The Circular High Rate Inclined Plate Thickener supplied by EPIC is a cutting-edge equipment solution designed to optimize solid-liquid separation in industrial mineral processing. Combining compact design with high processing capacity, this thickener is ideal for facilities with limited space and stringent requirements for underflow solid content and overflow clarity.

Product Parameter

Advantages

High-Efficiency Sedimentation

The thickener uses inclined plate groups in the upper box to increase the effective settling area without enlarging the footprint. Solids settle along the plates while clarified water rises freely, enabling small volume and high throughput operation.

Optimized Flocculation

High-efficiency flocculation accelerates sedimentation. Thick mud slides along the plates into the lower cone for compression and gravity discharge. Optional mechanical agitation ensures smooth mud removal.

Compact Design, Large Throughput

Compared with conventional thickeners, the inclined plate design saves floor space while maintaining high processing capacity, perfect for constrained industrial sites.

Reliable Overflow and Underflow Quality

The overflow tank of Circular High Rate Inclined Plate Thickener ensures low turbidity water, while the underflow achieves high solid content, improving downstream processing efficiency.

Comparative Advantages

This comparison highlights the EPIC thickener’s superior efficiency, compact design, and low maintenance compared with traditional circular thickeners.

Applications

The Circular High Rate Inclined Plate Thickener is suitable for a wide range of industrial applications, including:

· Mineral processing plants for thickening tailings, slurries, and concentrates.

· Chemical and metallurgical plants requiring clear overflow water and high underflow solid concentration.

· Industrial sites with limited space where conventional thickeners are impractical.

· Recycling processes where high underflow solids improve water conservation and downstream efficiency.

· Wastewater treatment plants requiring rapid sedimentation and compact equipment layout.

How the Inclined Plate Thickener Works

1. Feed Introduction: Slurry enters from both sides at the lower end of each inclined plate unit.

2. Sedimentation: Solids settle along the inclined plates while clarified liquid rises to the overflow.

3. Mud Compression: Settled solids slide to the lower cone, where they are compacted and dehydrated.

4. Discharge: Thick mud is discharged by gravity or mechanical agitation for continuous operation.

5. Overflow: Clarified water exits through the overflow tank, maintaining low turbidity.

This simple yet highly efficient process of Circular High Rate Inclined Plate Thickener ensures rapid separation, high underflow solids, and reliable operation.

Customer Assurance and Factory Support

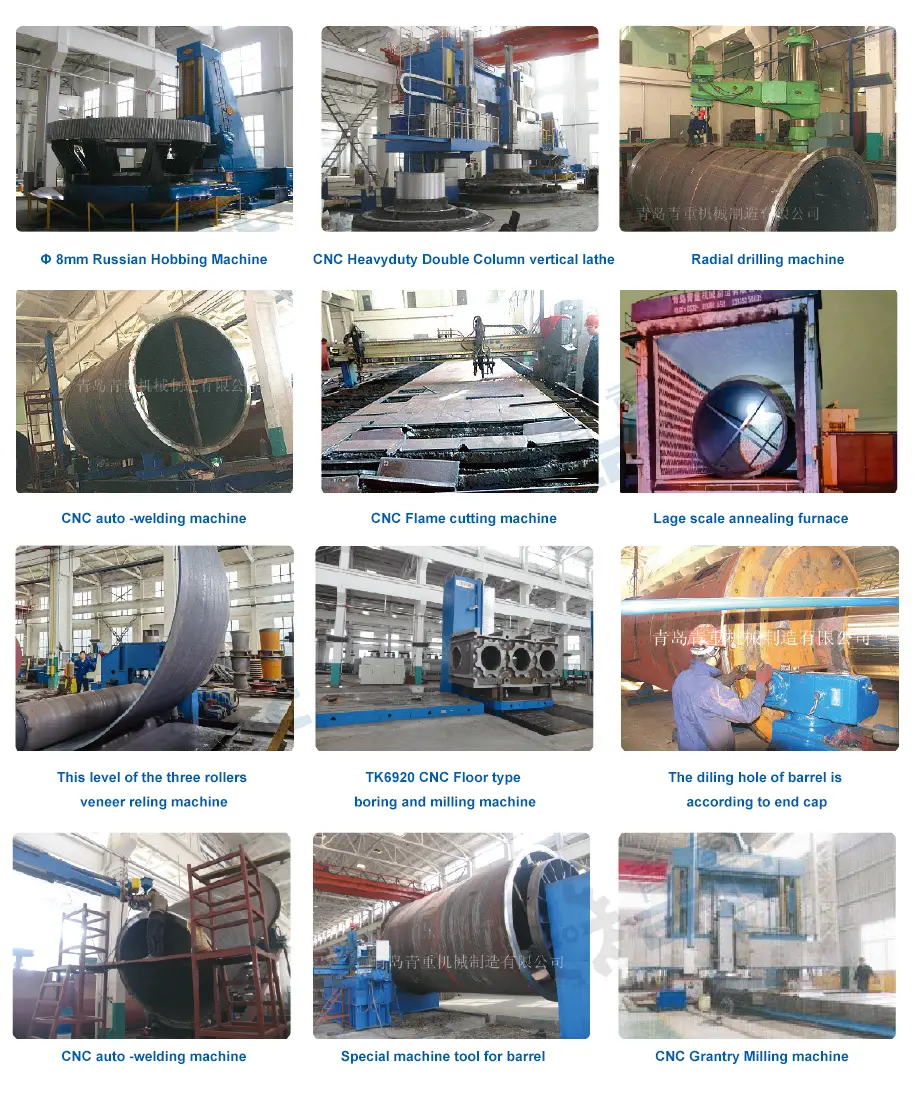

EPIC is a modern manufacturer with over 500 employees, including 15% frontline engineers and designers. With strong manufacturing capabilities, advanced CNC and automated equipment, and ISO9001:2015 certification, EPIC ensures world-class quality and reliability.

EPIC provides complete support including installation guidance, commissioning, operational training, and ongoing technical assistance to ensure the thickener meets production requirements.

FAQ

Q: What is the main advantage of inclined plate thickening? A: It increases settling area without expanding the equipment footprint, enabling high throughput in limited space.

Q: Can the underflow solids concentration be adjusted? A: Yes, through flocculation dosing and optional mechanical agitation.

Q: Is the thickener suitable for space-limited sites? A: Absolutely, its inclined plate design is ideal for constrained industrial layouts.

Q: Which industries benefit from this thickener? A: Mining, metallurgy, chemical processing, and wastewater treatment facilities.

Q: Are custom configurations available? A: Yes, EPIC can customize plate arrangement, diameter, and capacity according to project requirements.

The Circular High Rate Inclined Plate Thickener from EPIC combines high efficiency, compact design, and reliable operation. It is ideal for industrial facilities requiring rapid separation, high underflow solids, and clear overflow water. With EPIC’s expertise, advanced technology, and international quality certifications, this thickener delivers world-class performance for mineral processing and industrial applications.
