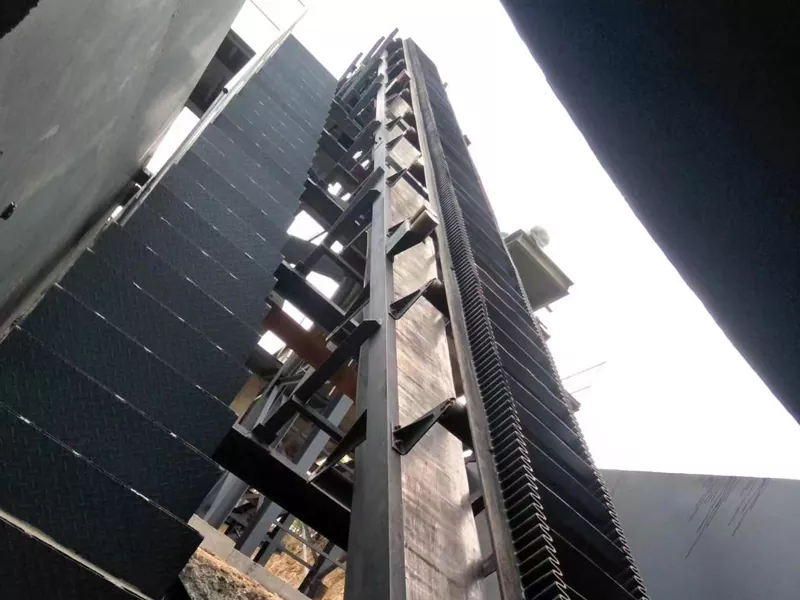

Corrugated Sidewall Belt Conveyor

EPIC specializes in Corrugated Sidewall Belt Conveyor, high-efficiency vertical conveying systems for mining, cement, sand, coal and bulk material industries. Designed with corrugated sidewalls and diaphragm belts, the conveyor supports conveying angles up to 90°, greatly reducing land occupation and civil construction costs. With stable operation, large throughput, low energy consumption and reliable performance, this equipment is ideal for long-distance, large-angle and vertical material transportation.

Send Inquiry

Product Description

EPIC supplies Corrugated Sidewall Belt Conveyor systems for mining, metallurgy, cement, coal, chemical and aggregate industries worldwide. Designed for large inclination and vertical conveying applications, this conveyor system combines high conveying efficiency, compact structure and low operating cost, making it an ideal solution for modern bulk material transportation projects.

The system adopts high-strength corrugated sidewall conveyor belts and transverse diaphragms, allowing materials to be transported safely at steep angles up to 90°. Compared with traditional belt conveyors, it significantly reduces floor space requirements and civil engineering investment while improving overall conveying efficiency.

Product Parameter

tape widthB(mm)		300		400		500		650		800
Edge height(mm)		40	60	60	80	80	120	120	160	120	160	200	240
Partial conveying angle conveying capacity Q³/h	30°	15	14	20	34	46	71	104	120	128	157	195	235
	45°	11	10	14	26	35	57	83	97	102	127	157	195
	60°	8	7	10	18	25	40	58	69	72	90	112	142
	90°	4	4	5	10	13	21	31	37	38	48	60	76
Overall dimension	H²/h(mm) Head wheel center height	350-100				1100-2000		1300-2000		1300-2000
	H/h(mm) Tail wheel center heigh	t 335		330-490		600		600		600-800
	H/h(mm) Surface height of middle section	450		500-700		760-800		800-850		800-1115
	B²/h(mm) Foundation width of middle section	480		580		870		1020		1220

tape widthB(mm)		1000				1200				1400
Edge height(mm)		120	160	200	240	160	200	240	300	160	2 200	240	300	400
Partial conveying angle conveying capacity Q³/h	30°	172	216	267	327	275	331	419	466	319	395	500	564	794
	45°	137	175	216	271	222	267	347	384	258	318	414	465	680
	60°	96	124	153	197	158	190	253	178	184	226	302	337	524
	90°	51	66	83	106	85	102	136	149	98	121	162	180	281
Overall dimension	H²/h(mm) Head wheel center height	1400-2000 1600-2000
	H/h(mm) Tail wheel center height	600-800				800-1000				800-1200
	H/h(mm) Surface height of middle section	800-1200				1050-1500				1050-1700
	B²/h(mm) Foundation width of middle section	1440				1690				1890

Why Choose EPIC Belt Conveyor?

High Inclination Conveying up to 90°

Traditional conveyors are generally limited to small conveying angles. EPIC’s advanced corrugated sidewall design enables vertical lifting and large-angle conveying, greatly improving space utilization.

Save Installation Space

The compact structure minimizes land occupation and reduces factory layout limitations, making it ideal for mines, ports, underground projects and industrial plants.

Lower Civil Construction Costs

Because the conveying path can be steeper, customers can reduce supporting steel structures, transfer stations and civil engineering expenses.

Stable Operation and Low Noise

The equipment of Corrugated Sidewall Belt Conveyor runs smoothly with low vibration and low operating noise, ensuring reliable long-term production.

Main Features

Heavy-Duty Conveyor Belt Design

The conveyor belt uses reinforced rubber materials with strong tensile strength and excellent wear resistance, suitable for harsh mining and industrial environments.

Corrugated Sidewall Structure

The sidewalls prevent material leakage during steep-angle transportation.

Cross Cleats / Diaphragms

The diaphragms securely hold materials on the belt surface and improve conveying stability.

Technical Advantages Compared with Traditional Conveyor Systems

Item	Traditional Belt Conveyor	Corrugated Sidewall Belt Conveyor
Conveying Angle	Usually ≤20°	Up to 90°
Floor Space	Large	Small
Material Spillage	Easy at steep angles	Excellent anti-spillage
Civil Construction Cost	Higher	Lower
Conveying Efficiency	Medium	High
Installation Flexibility	Limited	Strong
Vertical Conveying	Difficult	Excellent

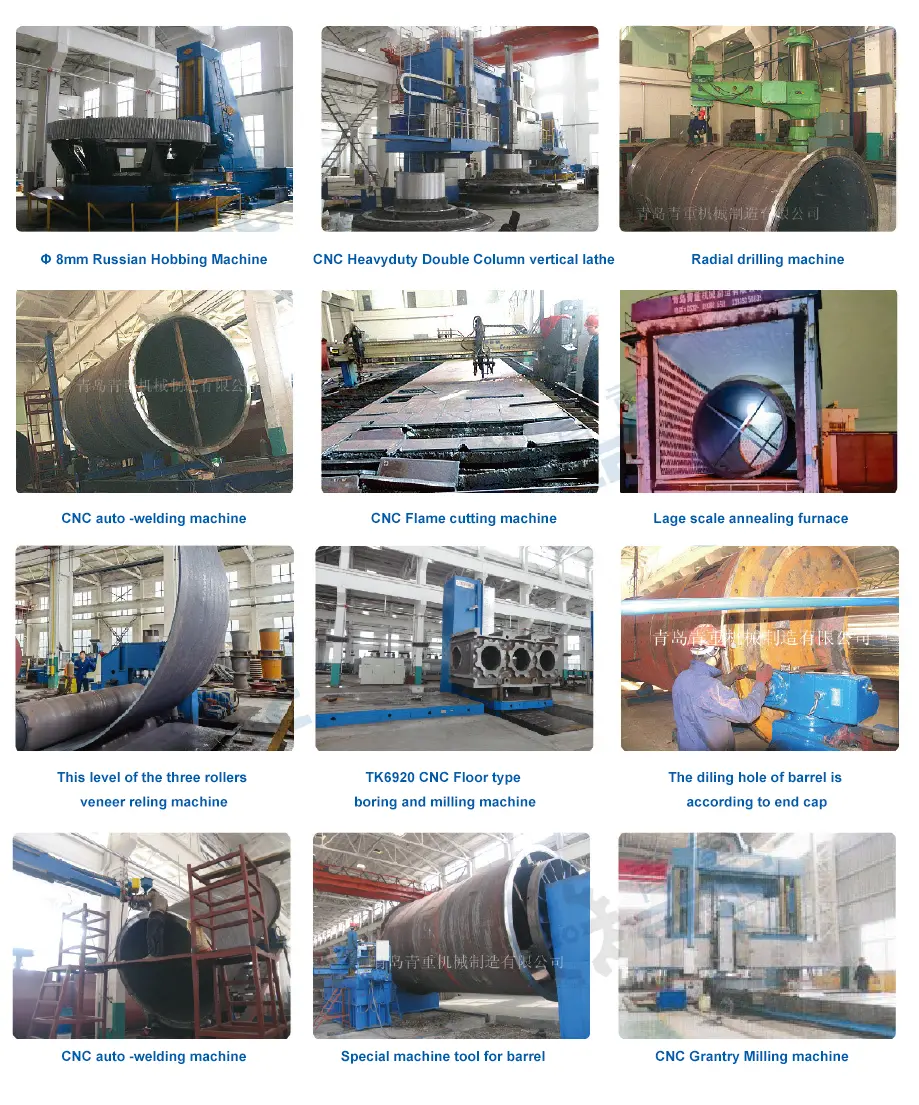

Advanced Processing Equipment

The factory is equipped with more than 100 sets of large and medium-sized processing machines, including:

· 8-meter CNC heavy gear hobbing machine

· Large floor boring and milling machine

· CNC vertical lathe

· Heavy-duty floor lathe

· CNC plate bending machine

· CNC steel plate cutting machine

· Automatic welding systems

· Large annealing furnaces

Quality Certifications and Innovation

EPIC adheres to strict international manufacturing standards and has obtained:

· ISO9001:2015 Quality Management System Certification

· Multiple utility model patents

· Invention patents

· High-tech enterprise recognition

Continuous innovation and quality improvement of Corrugated Sidewall Belt Conveyor remain the core driving forces behind the company’s global development.

Customized Conveyor Solutions for Different Industries

Every production line has unique material characteristics and layout requirements. EPIC provides customized design services based on:

· Material type

· Conveying distance

· Conveying angle

· Capacity requirements

· Installation environment

· Power configuration

Complete Service Support from EPIC

Pre-Sales Consultation

· Material analysis

· Process recommendation

· Equipment selection

· Technical proposal

Installation & Commissioning

· On-site guidance

· Equipment debugging

· Operator training

After-Sales Service

· Spare parts support

· Technical assistance

· Maintenance guidance

· Long-term operation support

Choose EPIC for Your Bulk Material Conveying Project

Whether you are building a mining plant, aggregate production line, cement factory or industrial conveying system, the EPIC Corrugated Sidewall Belt Conveyor provides an efficient, reliable and cost-effective solution for steep-angle and vertical bulk material transportation.

With advanced manufacturing capability, professional engineering support and rich EPC project experience, EPIC continues to help global customers improve production efficiency and reduce operating costs through innovative conveying technology.
