Hammer Crusher

EPIC is Hammer Crusher manufacturer in China. The equipment can adjust the grate gap according to user requirements and change the discharge particle size to meet the different needs of different users.

Product Overview

·  Engineered to crush a wide range of materials, including limestone, coal, gypsum, slag, and construction debris.

·  Features a robust rotor and wear-resistant hammer heads for durability and long service life.

·  Adjustable grate design ensures uniform particle size.

·  Suitable for multiple industries: mining, cement, metallurgy, coal, building materials, and fuel.

·  Accommodates feed sizes from 40mm to 500mm, depending on the model.

·  Fully sealed body prevents dust leakage and reduces environmental pollution.

·  Compact structure with minimal wearing parts for easy maintenance.

·  Aesthetic design and user-friendly operation, making it an upgraded industrial crushing solution.

Working Principle

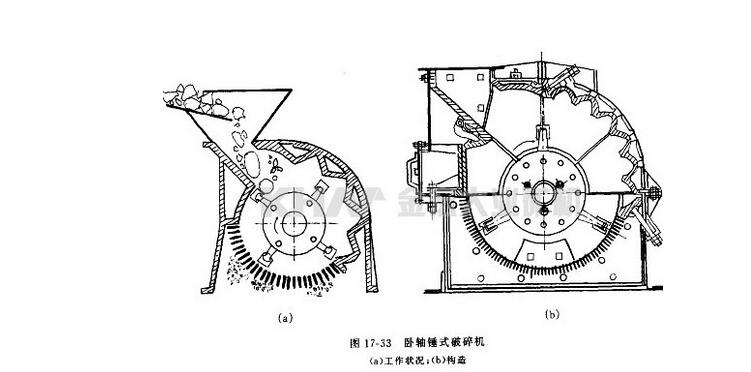

The motor drives the rotor to rotate at high speed within the crushing chamber. Material enters from the top feeding port and is impacted, sheared, and ground by high-speed hammers. Particles smaller than the screen plate holes exit directly, while larger particles continue to be crushed until they meet the desired size. This process ensures consistent output and high efficiency.

Technical Specifications

Key Features

· Wear-resistant Hammer Heads: Cast using advanced processes of Hammer Crusher for durability and impact resistance.

· Adjustable Output: Grate gap can be modified to produce desired particle size.

· Sealed Body: Prevents dust pollution and material leakage.

· Compact & Efficient Design: Fewer wearing parts, convenient maintenance, aesthetic appearance.

· Versatile Material Handling: Capable of processing medium-hard ores, coal, gypsum, slag, wood, and fibrous materials.

Comparison

Production Process & Quality Control

EPIC implements strict quality control at every stage:

1. Material Selection: High-strength cast steel for hammers and rotors.

2. Precision Manufacturing: CNC machining of Hammer Crusher ensures tight tolerances.

3. Assembly & Testing: Each crusher undergoes full assembly inspection and trial runs.

4. Performance Verification: Capacity, particle size, and energy consumption are tested to meet or exceed design requirements.

FAQs

What Materials Can the Crusher Process? The crusher handles medium-hard ores, coal, gypsum, slag, construction debris, wood, and paper with elasticity and fibrous structure.

How to Maintain it？

· Regularly check hammer wear and replace as needed.

· Inspect rotor and bearings for damage.

· Clean screen plates to prevent blockage.

· Lubricate moving parts according to schedule.

What is the Difference Between a Hammer and an Impact Crusher?

· Hammer Crusher: Uses high-speed hammers to crush materials; better for brittle, medium-hard, and fibrous materials.

· Impact Crusher: Relies on impact with a blow bar and rotor; suited for hard, non-fibrous rocks.

· EPIC Crusher: Offers adjustable discharge size, higher wear resistance, and better dust control than ordinary impact crushers.

The EPIC Hammer Crusher ensures reliable operation, stable performance, and long service life, making it the preferred choice for industrial crushing solutions worldwide. EPIC combines over 15 years of professional manufacturing experience, advanced CNC equipment, patent-protected designs, and a commitment to international quality standards.
