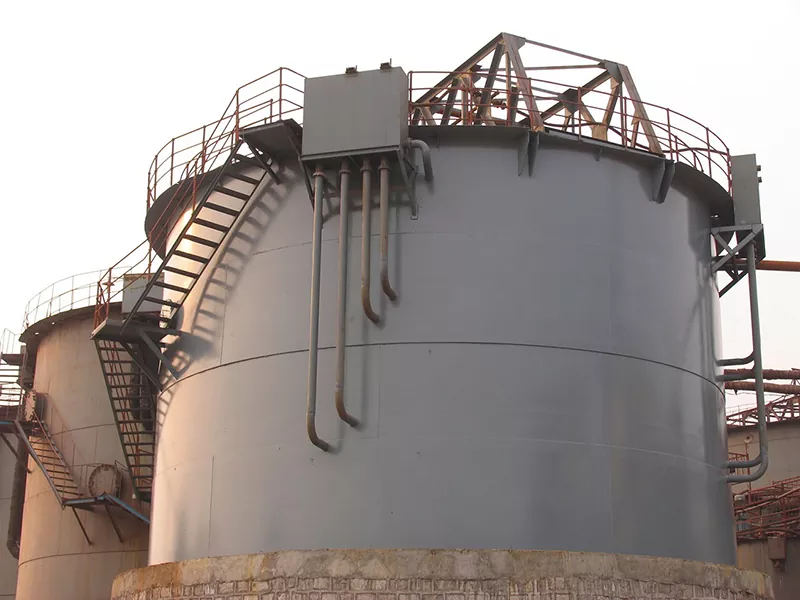

High-rate Thickener

High-rate Thickener which is manufactured by EPIC is a high-performance slurry clarification and concentration solution, exported globally with a reputation for reliability and efficiency. This thickener is designed to reduce equipment footprint while maximizing sedimentation rate and underflow concentration through chemical-assisted flocculation and deep bed compression. Its innovative design ensures smooth slurry distribution, prevents short-circuiting, and improves processing capacity compared to traditional thickeners.

Core Features & Advantages

1. Treatment Flux Excellence – Modern High-Efficiency Standard

· Units achieve exceptional processing per square meter, significantly surpassing conventional thickeners.

· Recognized as a “modern high-efficiency plant standard” for mining, metallurgy, and chemical operations.

2. Mud Bed Filtration Technology – Patented Feedwell Mixing

· Feed slurry is evenly distributed through a specially designed feedwell, preventing turbulence.

· Slurry passes through the dense mud bed, performing self-filtration and ensuring clear overflow water.

· Enhances overall underflow quality and reduces downstream water treatment costs.

3. Deep Compression Design – Higher Solids Concentration

· Deep tank and sludge bed of High-rate Thickener create static pressure that compresses sediments.

· Produces higher-density underflow, reducing load on subsequent filtration equipment.

· Improves slurry transport efficiency and reduces chemical usage per ton of solids.

4. Energy & Chemical Efficiency

· Optimized rake and flow design reduce mixing energy and flocculant consumption.

· High underflow density ensures minimal water loss and improved recycling in process circuits.

5. Wide Industrial Application

· Ideal for large-scale modern factories with strict underflow concentration requirements.

· Suitable for mining, metallurgy, chemical, building materials, and environmental sectors.

Working Principle

The High-rate Thickener operates through a combination of chemical-assisted flocculation, deep bed compression, and mechanical scrapers:

1. Slurry enters through a feed sleeve equipped with a feed tray to evenly distribute the material and prevent turbulence caused by residual feeding pressure.

2. The internal flow weir guides the slurry along the designated stroke for uniform distribution.

3. Flocculants accelerate sedimentation, forming a dense mud bed that acts as a natural filter, separating solids from liquid.

4. The rake mechanism, with its optimized curved teeth, scrapes concentrated underflow efficiently to the discharge point.

5. Gas bubbles are eliminated in the degassing tank to prevent frothing, ensuring consistent overflow water quality.

This combination allows the thickener to achieve higher underflow density and processing capacity with smaller equipment dimensions.

Technical Parameters

Performance Comparison

Frequently Asked Questions

Q1: What is the main advantage of the feedwell design? A1: The patented feedwell evenly distributes slurry and prevents turbulence, allowing it to pass through the dense mud bed for self-filtration, resulting in clearer overflow and higher underflow density.

Q2: How does deep compression improve underflow quality? A2: The deep tank of High-rate Thickener design applies static pressure on the mud bed, compressing solids and producing a higher-concentration underflow, reducing load on downstream filtration equipment.

Q3: Can this thickener reduce chemical usage? A3: Yes. With chemical-assisted flocculation and optimized mud bed filtration, reagent consumption per ton of solids is significantly lower than conventional thickeners.

Q4: What types of slurry can it handle? A4: It is suitable for mining slurries, metallurgical residues, chemical suspensions, building material slimes, and wastewater requiring high underflow density.

Q5: How does it compare to conventional thickeners in footprint and efficiency? A5: It achieves 30–50% higher treatment flux in a compact footprint, while producing higher-density underflow and clearer overflow water.

EPIC’s High-rate Thickener represents the pinnacle of modern thickener technology: peak treatment flux, low chemical consumption, and high-density underflow. Its patented feedwell, deep compression design, and self-filtration mud bed ensure optimal performance for industrial plants pursuing extreme capacity, efficient reagent use, and stringent underflow quality. Trusted globally, it is a core solution for modern high-efficiency mineral processing and industrial operations.
