High Weir Spiral Classifier

A trusted China factory and supplier EPIC provides the High Weir Spiral Classifier, delivering premium quality and high performance. This equipment efficiently separates fine and coarse particles in ore dressing plants, enhances ball mill operation, and reduces energy consumption by 1–1.5 kWh per ton. Its automatic sand return device eliminates large spoon heads, minimizes gear stress, and simplifies maintenance. Versatile for metallic and non-metallic ores, it ensures consistent processing results across diverse industrial applications.

Key Features and Advantages

1. Automatic Sand Return Device – The return sand end is equipped with an automatic lifting device, eliminating the need for the large spoon head in the ball mill. This innovation ensures smoother operation and reduces the risk of mechanical failure.

2. Energy Efficient – Typically saves 1 to 1.5 kWh of electricity per ton of ore processed.

3. Reliable Operation – The High Weir Spiral Classifier features a simple structure, reducing maintenance requirements while maintaining stable performance.

4. Enhanced Equipment Longevity – The new design reduces unbalanced stress on large and small gears of the ball mill.

5. Flexible Application Range – Can be used for pre-grading, inspection grading, washing clay-containing ores, and desludging or dewatering ore pulp.

Working Principle

The High Weir Spiral Classifier operates by feeding ground slurry into a sedimentation water tank through the feed port positioned at the middle of the sedimentation area. The spiral rotates at a low speed to stir the slurry, allowing finer particles to remain suspended and flow toward the overflow weir. Coarser particles settle at the bottom and are transported to the discharge port as return sand. The overflow weir is strategically placed higher than the bearing center at the lower end of the spiral shaft but below the upper edge of the spiral at the overflow end, ensuring optimal classification efficiency.

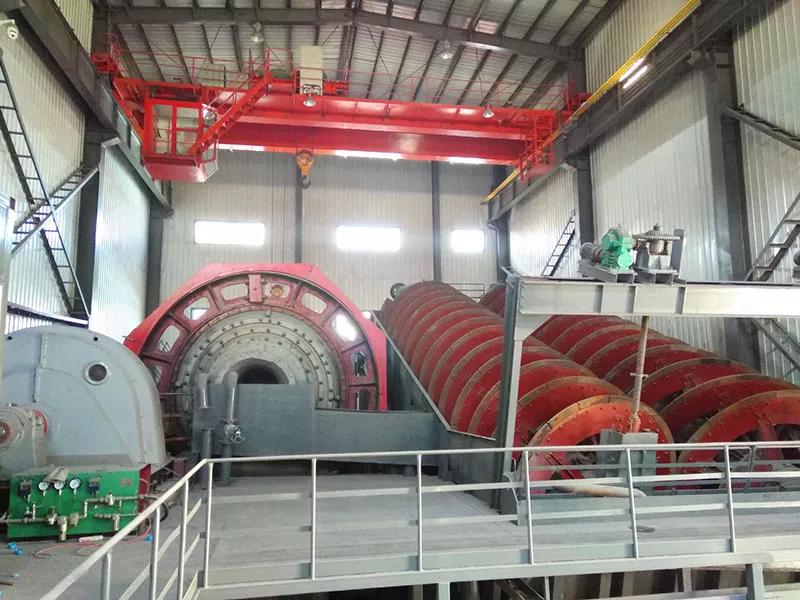

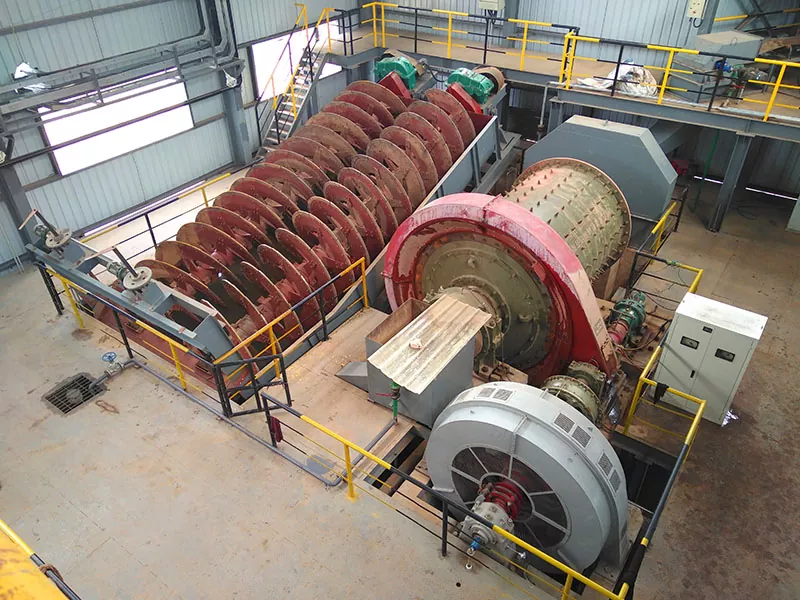

The product’s design supports a smooth integration with ball mills in ore processing circuits, forming a closed-loop system that improves grinding efficiency and mineral separation accuracy.

Specifications Table

Applications and Operational Advantages

· Closed-Loop Grinding Circuits: Works seamlessly with ball mills to separate fine and coarse ore particles.

· Gravity Ore Processing: Effectively classifies ore sand and fine mud, improving the efficiency of downstream operations.

· Ore Washing & Dewatering: Can be employed to remove clay or perform desludging, reducing water content and enhancing ore quality.

· Versatile Capacity: Accommodates a production capacity ranging from 10 to 1785 t/d, suitable for small to large-scale operations.

The High Weir Spiral Classifier ensures that material flow is stable, reducing downtime and maintenance frequency. Its robust construction and high-grade components make it ideal for long-term operation in harsh industrial environments.

Technical Improvements

· Automatic Sand Lifting Device: Enhances return sand handling, eliminating reliance on large spoon heads and improving ball mill efficiency.

· Reduced Gear Stress: Minimizes unbalanced impact on ball mill gears, reducing repair costs and extending machinery lifespan.

· Energy Savings: Operational design contributes to significant energy reduction without compromising throughput or classification accuracy.

Installation and Maintenance Tips

1. Level Foundation: Ensure the water tank is installed on a stable, level surface for optimal spiral operation.

2. Lubrication: Regularly check and maintain lubrication of bearing points to ensure smooth rotation.

3. Monitoring: Monitor slurry levels at the overflow weir to maintain classification accuracy.

4. Periodic Cleaning: Remove accumulated sludge from the bottom of the tank to prevent performance degradation.

FAQ

Q1: What is a High Weir Spiral Classifier used for? A1: Classifying ore in closed-loop grinding, washing clay-containing ores, dewatering, and grading fine and coarse materials.

Q2: How does the automatic sand return help? A2: Eliminates the large spoon head, reduces maintenance, and ensures smoother ball mill operation.

Q3: What is the capacity range? A3: 10 t/d to 1785 t/d, suitable for small to large-scale operations.

Q4: Is it energy-efficient? A4: Yes, saves 1–1.5 kWh per ton of ore while maintaining accuracy.

Q5: What maintenance is needed? A5: Lubricate bearings, monitor slurry levels, and clean sludge regularly.

Q6: Why choose EPIC? A6: EPIC provides high-quality, reliable equipment with full technical support and operational guidance.
