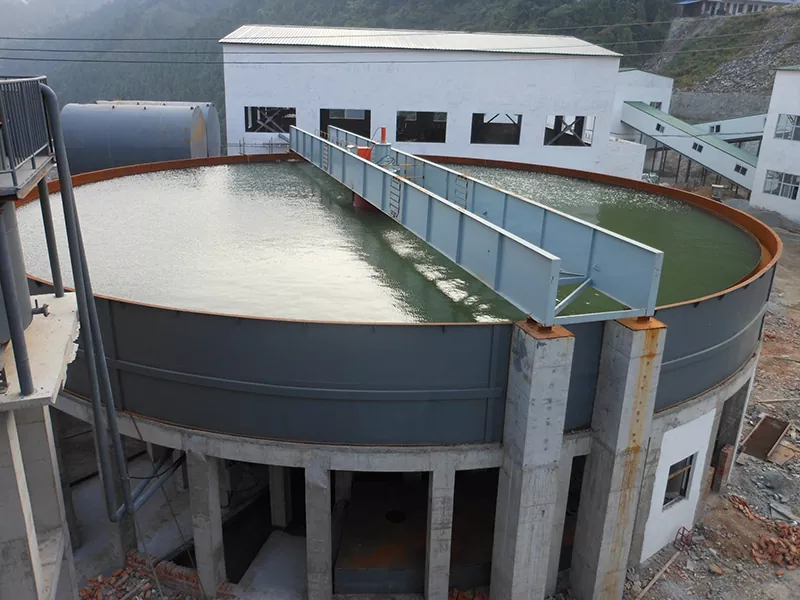

Hydraulic Pressure Center Transmission Thickener

EPIC, a leading Chinese manufacturer, specializes in Hydraulic Pressure Center Transmission Thickener. This high-performance thickener combines heavy-duty processing capacity, intelligent hydraulic control, and high-concentration underflow output, making it ideal for slurry clarification and solid-liquid separation in mining, metallurgical. EPIC ensures efficiency, reliability, and low maintenance, offering a cost-effective solution for large-scale mineral processing.

Send Inquiry

Product Description

The EPIC Hydraulic Pressure Center Transmission Thickener from China is a premium export-grade slurry concentration and clarification equipment, designed for large-scale mineral processing plants. It integrates a central hydraulic motor drive with PLC-controlled automatic rake lifting, providing excellent efficiency and reliability. With its robust construction, intelligent overload protection, and high-concentration underflow output, this thickener has become the preferred choice for mining, chemical, and metallurgical industries.

Product Parameter

Model	Tank inner diameter (m)	Pool depth (m)	Area (m²)	speed of rabble frame (r/min)	Rake speed Rake speed (mm/min)	Rake lifting height (mm)	Processing capacity (t/d)	Oil pump motor set	Hydraulic motor reducer	Hydraulic cylinder for liting rake	Power (kw)
NXZ-16	16	4.55	200	0.1-0.2	31	450	400-600	25SCY-132M2-6	HZB100-NHM2-100	HG5-45/50-450	5.5
NXZ-18	18	4.545	254	0.1-0.2	31	450	650-900	25SCY-132M2-6	HZB100-NHM2-100	HGS-45/50-450	6
NXA-24	24	5.343	450	0.11-0.24	31	450	1000-1500	25SCY-132M2-4	HZB100-NHM2-100	HGS-45/50-450	7.5
NXZ-30	30	5.343	706	0.11-0.24	31	450	1600-2500	25SCY-132M2-4	HZB100-NHM2-100	HGS-45/50-450	7.5
NXA-38	38	5.866	1134	0.11-0.24	31	450	2600-3500	63SCY-14-1B	HZB100-NHM2X3	HGS-45/50-450	11
NXZ-45	45	6.45	1590	0.25-0.4	31	600	3600-4200	63SCY-14-1B	HZB100-NHM2X4	HGS-140/50-600x4	18.5
NXZ-53	53	7.117	2205	0.24-0.4	31	600	1300-5200	63SCY-14-1B	HZB100-NHM2X4	HGS-140/50-600x4	22

What are the Key Features of the Thickener?

· Heavy-Duty Processing Capacity – Capable of handling areas from 28 to 1590㎡, supporting slurry volumes significantly higher than traditional thickeners.

· Intelligent Hydraulic Protection – Equipped with overload protection, the central hydraulic drive ensures safe operation under varying loads.

· Automatic Rake Control – PLC automatically monitors pressure sensor signals to lift rakes as needed, minimizing downtime and manual intervention.

· High-Concentration Underflow Output – Optimized flocculation and sedimentation technology increase bottom slurry concentration by 4–8 times compared to conventional thickeners.

· Simple Maintenance – The transmission structure is straightforward, reducing maintenance time and cost.

· Optional Automatic Dosing System – Ensures precise flocculant addition, improving separation efficiency.

Working Principle

The Hydraulic Pressure Center Transmission Thickener operates through a combination of mechanical and hydraulic components:

· Components: Transmission device, bridge, dosing device, feed pipe, fixed barrel, distribution barrel, scraper, shaft, long rake, short rake, boom, electric control device, hydraulic station, and maintenance hanger.

· Operation: Slurry enters the concentrator where flocculation technology facilitates particle agglomeration. Fine particles rise and collide in the filter bed, combine under flocculants, and settle faster. This creates high-density underflow at the bottom and clearer overflow at the top.

· Efficiency: Sedimentation rates are accelerated, and processing capacity per unit area is significantly improved, achieving rapid clarification and high-concentration output.

Performance Comparison

Feature	EPIC Hydraulic Pressure Center Thickener	Traditional Thickener
Processing Capacity	High (up to 1590㎡)	Moderate
Bottom Slurry Concentration	4–8× higher	1×
Automation	PLC + Hydraulic Automatic Rake	Manual/Basic
Maintenance	Easy, low-cost	Medium-high
Overload Protection	Yes	No

Applications & Industry Use

The Hydraulic Pressure Center Transmission Thickener is widely applied in:

· Mining: Concentration of gold, copper, iron, and other mineral slurries.

· Metallurgical Industry: Slurry clarification, metal recovery, and dewatering.

· Chemical Industry: Solid-liquid separation, waste slurry treatment, and industrial water recovery.

It is particularly suitable for operations requiring high-density underflow, large processing capacity, and reliable automated control.

Why EPIC Transmission Thickener stand out？

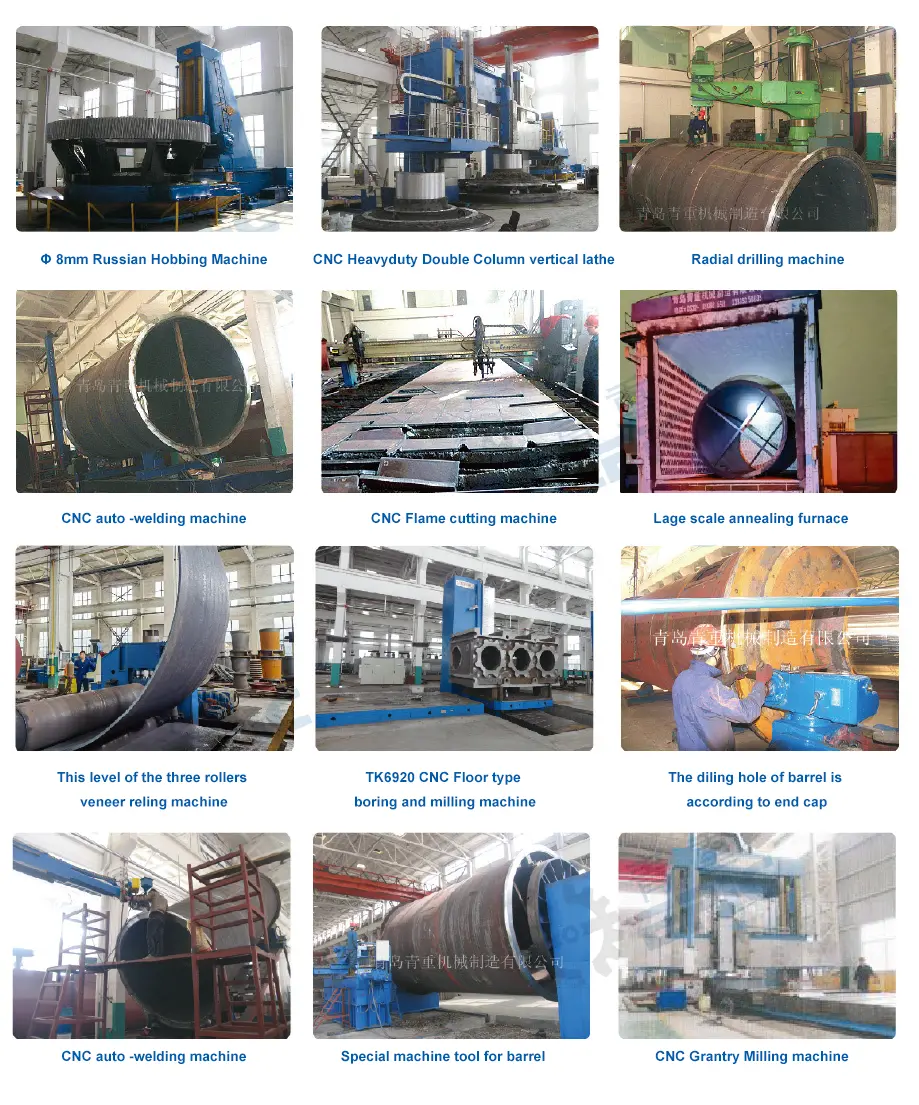

· Proven Manufacturing Strength: Over 100 sets of advanced processing equipment, including CNC heavy gear hobbing machines, large lathes, and automatic welding lines.

· Quality Certifications: ISO9001:2015 certified, 1 invention patent, 20 utility model patents, and rated as a specialized high-tech enterprise.

· Global Reach: Products exported to Russia, Kazakhstan, Tanzania, Chile, Namibia, Zimbabwe, and more, with high customer satisfaction.

· Innovation & Reliability: Continuous product improvement ensures stable operation, high concentration output, and cost-efficient mineral processing.

EPIC’s Hydraulic Pressure Center Transmission Thickener combines heavy-duty handling, intelligent hydraulic automation, and high-efficiency concentration, making it an ideal solution for modern mineral processing plants. With robust construction, smart protection features, and exceptional underflow concentration, it guarantees superior performance, easy maintenance, and long-term reliability, providing global clients with a competitive advantage.
