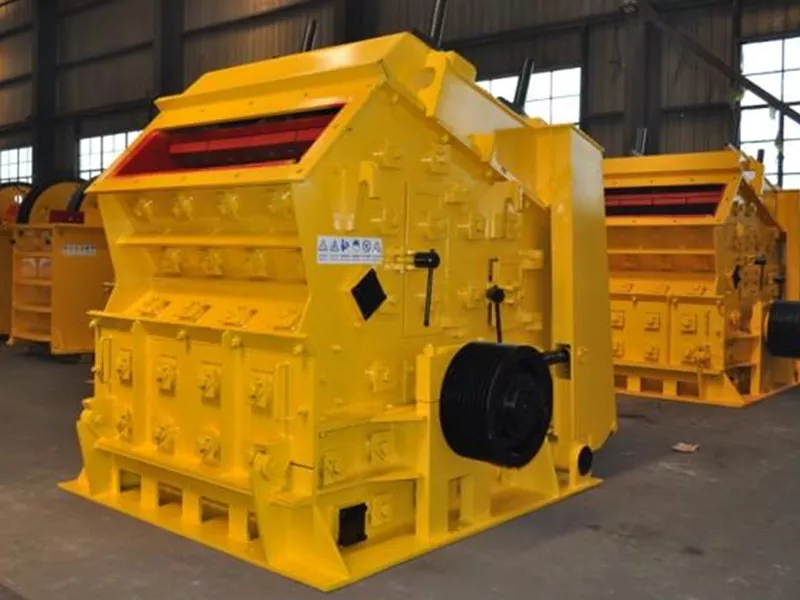

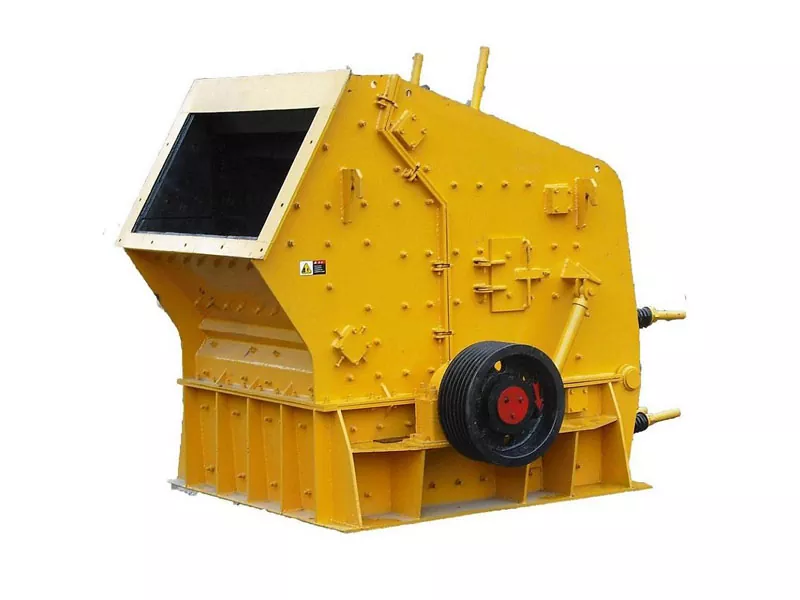

Impact Crusher

Impact Crusher is supplied by EPIC, a professional manufacturer and exporter specializing in high-efficiency mineral processing equipment. The crusher series is engineered for heavy-duty operations across metallurgy, mining, cement, chemical, refractory, and construction industries. With large feed capacity, high crushing ratio, and adjustable particle size, it ensures optimal performance for medium-hard materials.

Applications

 Industrial Uses

· Crushing ores, rocks, and construction materials.

· Road, railway, and water conservancy projects.

· Cement, chemical, and refractory industries.

· Machine-made sand processing for construction aggregates.

Product Advantages

1. Large Feed Inlet & High Crushing Chamber: Handles large block sizes with less stone powder, ensuring material integrity.

2. Adjustable Discharge Gap: Control particle size and achieve desired cubic shape.

3. Robust Rotor & High Moment of Inertia: Enhances crushing efficiency and machine stability.

4. High-Chromium Plate Hammer: Offers impact resistance, wear resistance, and extended service life.

5. Keyless Connection & Easy Maintenance: Reduces downtime and maintenance costs.

6. Complete Crushing Functionality: High productivity, low wear, and excellent cost-effectiveness.

Working Principle

The Impact Crusher uses impact energy to crush materials. Driven by the motor, the rotor rotates at high speed. Materials enter the rotor’s plate hammer area, collide with the hammers, and are crushed. Crushed materials then hit the impact device, rebound, and undergo secondary crushing. This cycle continues through successive chambers until material reaches the desired particle size and exits the discharge port.

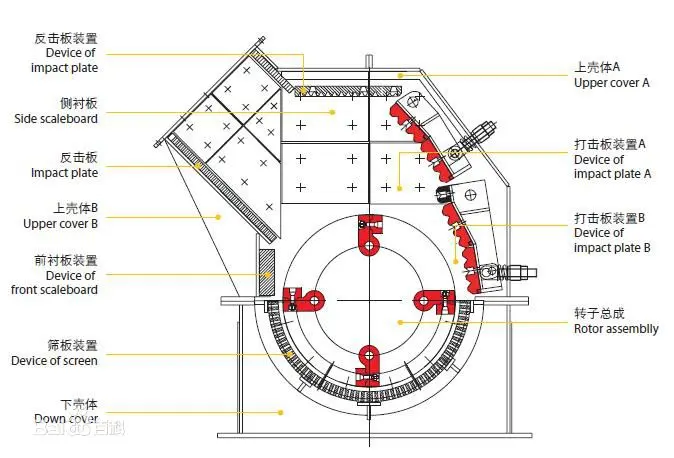

Structural Components:

· Casing: Encloses the crushing chamber and rotor.

· Rotor: High-speed rotating component with mounted plate hammers.

· Impact Plate: With wear-resistant linings to withstand repeated impacts.

Technical Specifications

Secondary & Tertiary Impact Crushers

Primary Impact Crushers

Manufacturing & Quality Assurance

EPIC, established in Qingdao, China, operates a state-of-the-art manufacturing facility with over 100 sets of large-scale CNC and processing equipment, including heavy gear hobbing machines, CNC lathes, bending machines, and annealing furnaces. Our benefits from:

· Advanced design and engineering.

· Stringent quality control and ISO9001:2015 certification.

· High-performance materials and components.

All products undergo pre-shipment testing and verification to ensure optimal performance in real-world applications.

Maintenance & Service

· Easy rotor and hammer replacement thanks to keyless connection.

· Wear-resistant parts reduce downtime and operating costs.

· EPIC provides full pre-sale, installation, commissioning, and training support.

· Global after-sales service ensures reliability and long-term operation.

FAQ

What is the difference between an impact and  a jaw crusher?

Jaw crushers crush materials by compression, suitable for hard and abrasive ores. Impact crushers use impact energy, providing higher crushing ratios and better cubic shape, ideal for medium-hard materials.

What are the main wear parts?

Plate hammers, impact plates, and rotor liners are primary wear parts. EPIC’s high-chromium hammers and wear-resistant linings significantly extend service life.

How can I optimize the crusher efficiency?

· Adjust the gap between rotor and impact frame for optimal particle size.

· Maintain rotor balance and hammer integrity.

· Feed material evenly and avoid overloading.

· Regularly inspect wear parts and replace as needed.

Can it handle large blocks of stone?

Yes, we can process materials up to 800mm in primary models, ensuring high throughput and minimal fines.

EPIC Impact Crusher delivers high crushing efficiency with uniform cubic particles, adjustable output sizes for versatile applications, and durable high-chromium hammers with wear-resistant linings. Combined with easy maintenance, reliable operation, and comprehensive global support from EPIC, it ensures long-term performance and customer satisfaction.
