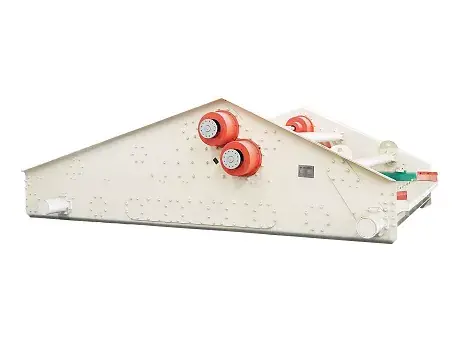

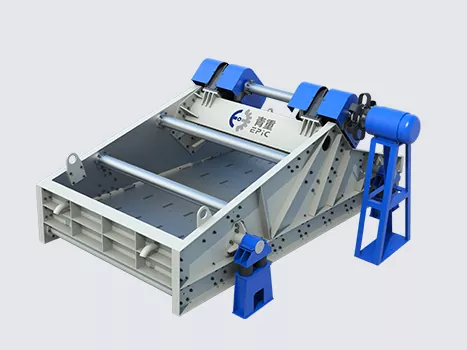

Linear Vibrating Screen

EPIC Linear Vibrating Screen is a professional manufacturer-supplied equipment designed to provide efficient, high-frequency screening for mineral processing, building materials, coal, chemical, and power generation industries. The product combines advanced engineering, durable construction, and precision design to deliver superior performance and reliability.

Working Principle

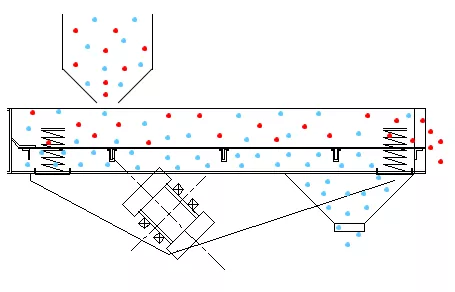

It operates by generating a straight-line vibration of the screen box using high-frequency motors. The material moves forward along the screen surface due to the combined effects of excitation force and gravity, enabling accurate separation of fine particles.

· DZS Type: Single motor drive; screen box reciprocates along a straight line for fine particle classification.

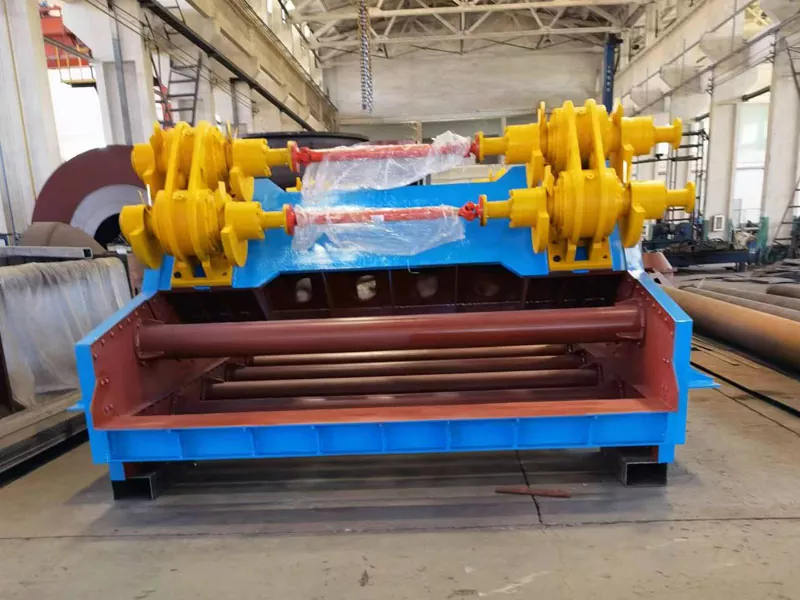

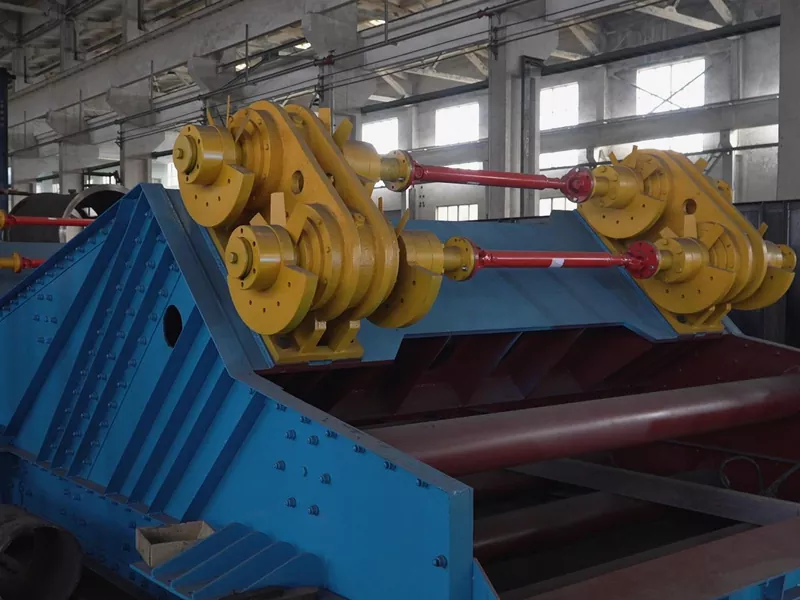

· ZKK Type: Double motor drive; counter-rotating vibrators create linear motion with large processing capacity.

· ZKB Type: Double excitation motor drive; wear-resistant modular screen plates ensure long service life.

FAQ Insights:

· What is the working principle of a dewatering vibrating screen? Material is thrown forward by linear vibration, water drains through screen plates, and solids move ahead for collection.

· How does a high-frequency screen differ from a conventional screen? High-frequency screens offer higher precision, smaller motor power, and faster screening speed.

· What is the function of the screen angle in dewatering? Adjustable  Linear Vibrating Screen angles enhance drainage, improve separation efficiency, and reduce clogging.

Equipment Features

· High screening efficiency with large processing capacity

· Adjustable Linear Vibrating Screen angle for optimal dehydration and desliming

· Welded screen body for rigidity and long service life

· Modular wear-resistant polyurethane screen plates (ZKB Type)

· Suitable for automatic pipeline operation (ZKK Type)

Product Applications

· Mineral Processing: Gold, copper, iron, and other ores fine particle screening

· Coal Industry: Dry and wet screening of coal fines

· Building Materials: Sand and gravel classification

· Power Generation: Ash and slurry separation

· Chemical Industry: Medium separation and dehydration

Why Choose Our Screen

Precision & Efficiency: High-frequency linear motion ensures accurate particle classification and maximum throughput.

1. Durable Construction: Welded, stress-relieved frames with wear-resistant screen plates for long-term use.

2. Low Energy Consumption: Smaller motor power delivers cost-effective operation without sacrificing performance.

3. Versatile Applications: Suitable for multiple industries, including mineral processing, coal, chemical, and construction.

4. Reliable Supply & Service: EPIC provides pre-sale consultation, on-site commissioning, and after-sales support globally.

EPIC Linear Vibrating Screen represents the perfect combination of efficiency, durability, and precision, making it the ideal solution for high-performance screening in mineral processing and industrial applications worldwide.

DZS Linear Vibrating Screen

Product Parameter

ZKK Linear Vibrating Screen

Product Parameter

ZKB Linear Vibrating Screen
