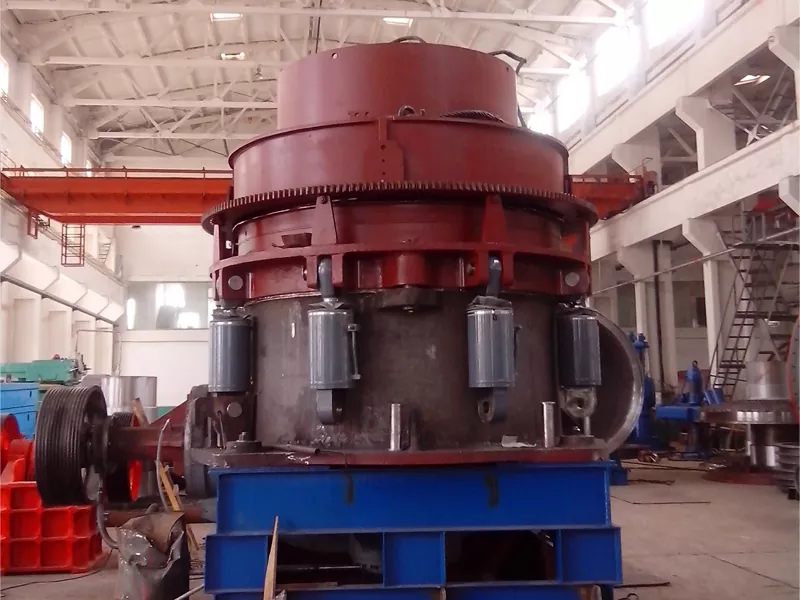

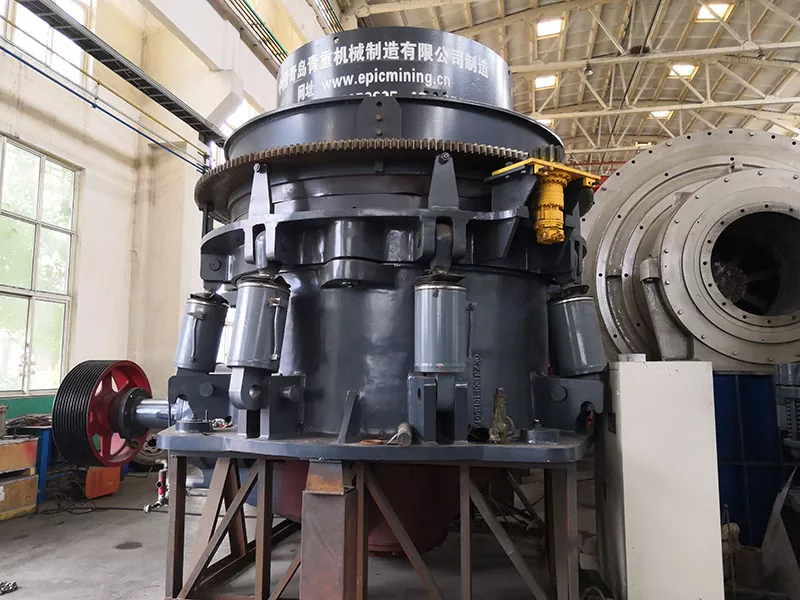

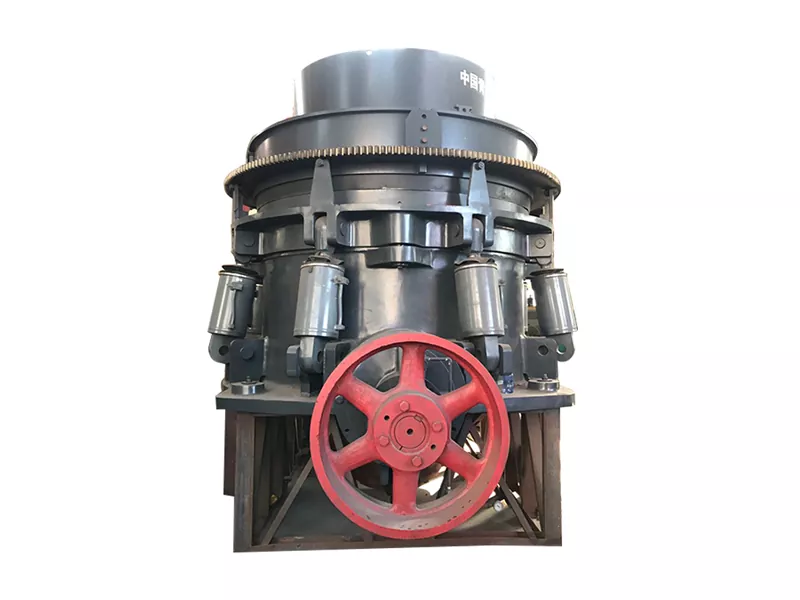

Multi Cylinder Hydraulic Cone Crusher

Multi Cylinder Hydraulic Cone Crusher is exported by EPIC who offers high-performance crushing solutions for mining and construction industries. This advanced multi-cylinder hydraulic cone crusher delivers higher throughput, superior product shape, and remarkable energy efficiency. Its automated operation, intelligent cavity clearing, and low maintenance ensure long-term reliability, making it an ideal choice for large stone plants and mining operations.

Send Inquiry

Product Description

EPIC Multi Cylinder Hydraulic Cone Crusher, supplied by our professional manufacturing team, is designed to provide superior crushing performance for medium-hard and hard rocks such as granite, basalt, and iron ore. As a high-energy cone crusher, it replaces traditional spring and general hydraulic cone crushers, providing higher production capacity, precision, and efficiency.

Essential Features and Upsides

High Crushing Frequency and Stroke – Maximizing Throughput

· Multi-cylinder design optimizes speed, stroke, and crushing chamber shape.

· Provides higher crushing frequency than conventional crushers, resulting in up to 30% higher throughput compared to single-cylinder or spring cone crushers.

· Ensures consistent feeding and output for medium, fine, and ultra-fine crushing applications.

Stable Discharge Setting – Ensuring Superior Product Shape

· Hydraulic cylinders uniformly support the top cover, maintaining rigidity during high-stress crushing.

· Stable discharge opening (CSS) minimizes needle-shaped and flaky particles.

· Produces more cubic and evenly graded final products.

Intelligent Cavity Clearing and Overload Protection – Enhancing Automation

· Bi-directional iron release system automatically lowers the top cover when uncrushable materials enter.

· Hydraulic system of Multi Cylinder Hydraulic Cone Crusher allows one-click cavity clearing, avoiding manual interventions.

· Adjustable discharge size via the control screen reduces labor and improves precision.

Easy Maintenance and Low Downtime

· Top-down dismantling design allows quick access to wear parts.

· Liners can be replaced without disassembling the main frame.

· Fully automatic lubrication system monitors oil temperature, flow, and pressure for safe operation.

Product Parameter

Model	Breakingdiameter(ft/mm)	Cavitytype	(inch/mm)Size of feed port		The smallestDischarge outlet(inch/mm)	Electric motor		Overall weight(excludingmotor)	Dischargeoutlet size(mm)	Capacity(t/h)
Model	Breakingdiameter(ft/mm)	Cavitytype	Closing side	Opening side	The smallestDischarge outlet(inch/mm)	Model	Power	Overall weight(excludingmotor)	Dischargeoutlet size(mm)	Capacity(t/h)
HPY-B1313	41/4(1295)	Thin	43/8(109)	53/8(137)	1/2(13)	JS126-6	155	26.5	13-31	125-210
HPY-B1321		Medium	71/2(188)	81/4(210)	5/8(16)				16-38	140-285
HPY-B1324		Coarse	85/8(216)	95/8(241)	3/4(19)				19-51	180-385
HPY-B1325		Extra-coarse	91/2(238)	103/8(259)	1 (25)				25-51	250-400
HPY-B1620	51/2(1676)	Thin	71/2(188)	83/8(209)	5/8(16)	JS136-6	240	49.6	16-38	205-365
HPY-B1624		Medium	81/2(213)	95/8(241)	7/8(22)				22-51	275-465
HPY-B1626		Coarse	95/8(241)	103/4(268)	1(25)				25-64	320-700
HPY-B1636		Extra-coarse	133/8(331)	141/2(368)	11/2(38)				38-64	465-755
HPY-BC2117	7 HDExtra Heavy(2134)	Thin	71/8(253)	111/8(278)	3/4(19)	Y450-6	400	105	19-38	410-805
HPY-BC2133		Medium	121/8(303)	133/8(334)	1(25)				25-51	560-1100
HPY-BC2136		Coarse	133/8(334)	143/4(369)	11/4(31)				31-64	860-1405960-1500
HPY-BC2146		Extra-coarse	163/8(425)	181/8(460)	11/2(38)				38-68	860-1405960-1500
HPY-B2530	81/2HD(2590)	Thin	107/8(275)	117/8(300)	3/4(19)	Y5602-12	560	135	19-3825-51	710-1250
HPY-B2535		Medium	125/8(320)	137/8(350)	1(25)				19-3825-51	1050-1960
HPY-B2541		Coarse	147/8(375)	161/8(410)	11/4(31)				31-64	1250-2560
HPY-B2548		Extra-coarse	171/2(445)	187/8(480)	11/2(38)				38-64	1450-2600
HPY-D0904	3(900)	Thin	1/2(13)	15/8(41)	1/8(3)	Y315S-6	75	15	3-13	30-105
HPY-D0906		Coarse	15/6(33)	23/8(61)	1/8(3)				3-16	30-120
HPY-D0907		Extra-coarse	2 (51)	3(76)	1/4(6)				6-19	60-145
HPY-D1306	41/4(1295)	Thin	11/8(29)	21/2(64)	1/8(3)	JS126-6	155	27	3-16	35-185
HPY-D1308		Medium	21/8(54)	31/2(89)	1/4(6)				6-16	80-185
HPY-D1310		Coarse	23/4(70)	41/8(105)	3/8(10)				10-25	115-255
HPY-D1313		Extra-coarse	37/8(98)	51/4(133)	5/8(16)				19-25	225-265
HPY-D1607	51/2(1676)	Thin	13/8 (35)	23/4(70)	3/16 (5)	JS136-6	240	49.7	5-13	105-240
HPY-D1608		Medium	21/8(54)	31/2(89)	1/4(6)				6-19	140-315
HPY-D1613		Coarse	37/8(98)	51/4(133)	3/8(10)				10-25	205-375
HPY-D1614		Extra-coarse	45/8(117)	61/4(158)	1/2(13)				13-28	285-375
HPY-DC2110	7HDExtra Heavy(2134)	Thin	2(51)	41/8(105)	3/16 (5)	Y450-6	400	105	5-16	200-455
HPY-DC2113		Medium	33/4(95)	51/4(132)	3/8(10)				10-19	460-560
HPY-DC2117		Coarse	5(172)	7(178)	1/2(13)				13-22	490-660
HPY-DC2120		Extra-coarse	6(152)	81/4(203)	5/8(16)				16-25	565-730
HPY-D2512	81/2HD(2590)	Thin	23/8(60)	43/4(120)	3/8(10)	Y5602-12	560	135	5-16	550-670
HPY-D2515		Medium	4(100)	6(150)	1/2(13)				10-19	660-820
HPY-D2519		Coarse	51/8(130)	71/2(190)	5/8(16)				13-22	760-1050
HPY-D2522		Extra-coarse	61/4(160)	85/8(220)	3/4(19)				16-25	910-1290

Trust Built on Performance and Compliance

· High Performance & Efficiency: Optimized crushing chamber and hydraulic system for maximum throughput.

· Durable & Reliable: Long-life wear parts and robust frame structure.

· High Automation: Intelligent operation reduces labor and improves safety.

· Global Recognition: ISO9001:2015 certified, multiple utility patents, high-tech enterprise designation.

· Extensive Experience: Products exported to Russia, Kazakhstan, Tanzania, Chile, Namibia, Zimbabwe, and more.

· Comprehensive Service: Pre-sale consultation, beneficiation testing, design, installation, training, and after-sales support.

Applications

· Wide Application: Medium, fine, and ultra-fine crushing of granite, basalt, and other medium-hard materials.

· Large Capacity: High production of Multi Cylinder Hydraulic Cone Crusher throughput for large stone plants and mining operations.

· Advanced Design: Combines high speed and long stroke for maximum crushing efficiency.

· User-Friendly Operation: Automated cavity clearing, hydraulic adjustment, and low maintenance.

FAQ

Q: What industries can use this crusher? A: Widely used in mining, quarrying, construction aggregates, and metallurgical industries.

Q: How often are wear parts replaced? A: With proper operation, liners and wear parts last significantly longer than ordinary crushers; top-down replacement reduces downtime.

Q: Can the discharge size be adjusted during operation? A: Yes, the hydraulic adjustment system allows precise CSS control directly from the operator screen.

Q: How do we ensure product quality? A: Advanced manufacturing equipment, experienced engineers, and rigorous QC procedures ensure each unit meets international standards.

Q: What makes EPIC Hydraulic Cone Crusher cost-effective? A: Higher throughput, automation, and durability reduce operating costs and maintenance, providing better ROI than ordinary crushers.

Multi Cylinder Hydraulic Cone Crusher with EPIC not only increases productivity but also reduces operating costs and maintenance downtime. Choosing EPIC means partnering with a trusted global supplier committed to delivering high-quality, high-performance crushing equipment and comprehensive after-sales support. Elevate your mining or stone processing operation with EPIC and experience the difference in efficiency, product quality, and return on investment.
