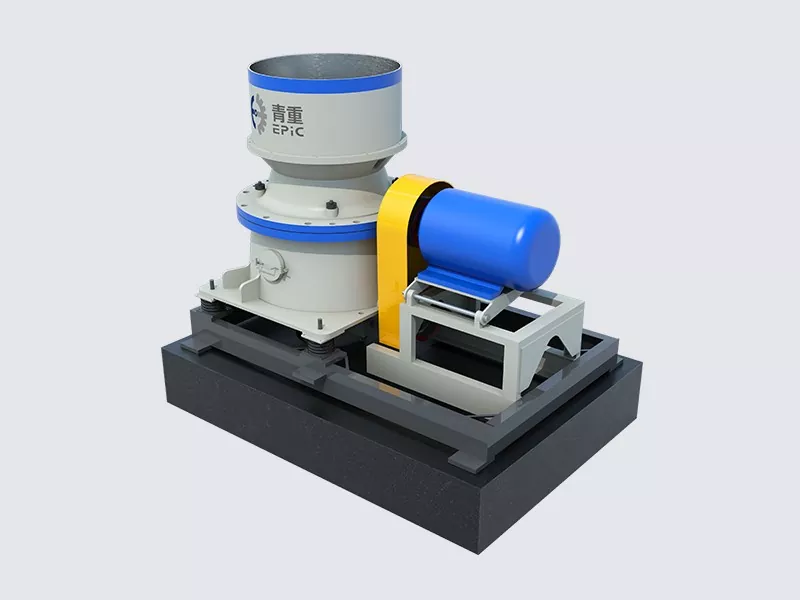

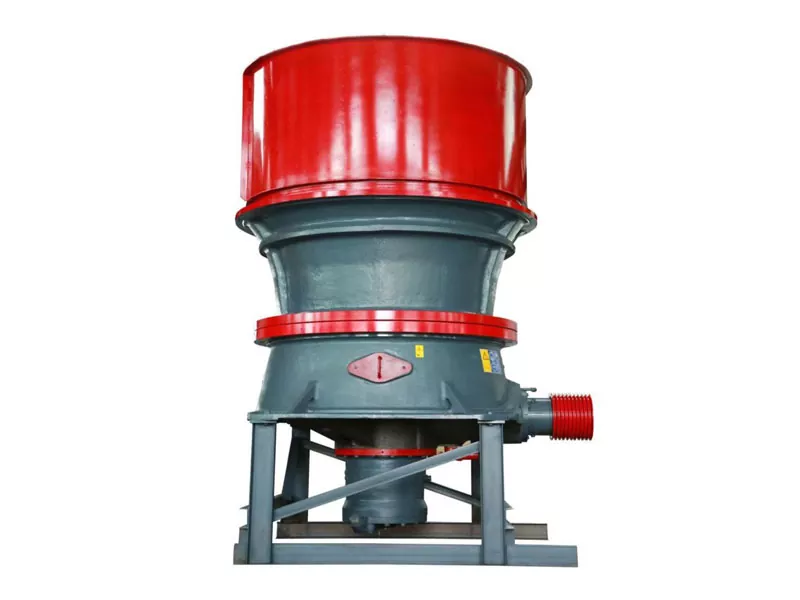

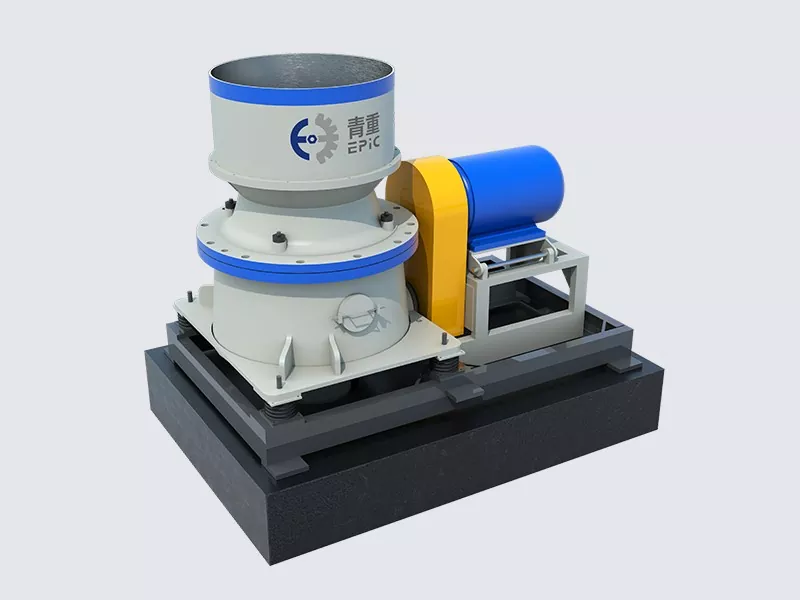

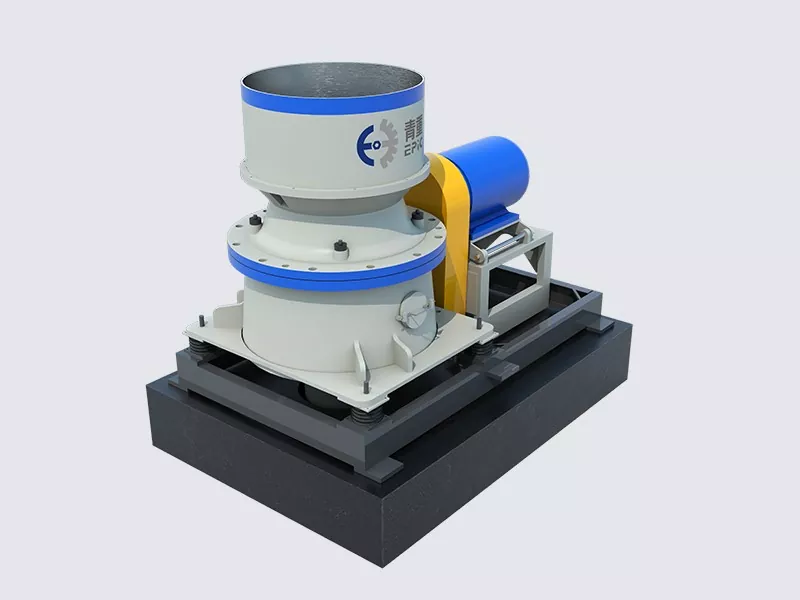

Single Cylinder Hydraulic Cone Crusher

EPIC manufactures Single Cylinder Hydraulic Cone Crusher which delivers unmatched efficiency, reliability, and precision in medium, fine, and ultra-fine crushing. With advanced hydraulic, mechanical, and intelligent control integration, it offers large capacity, low energy consumption, and easy maintenance—ideal for mining, construction, and metallurgy industries seeking high-performance crushing solutions.

Send Inquiry

Product Description

At EPIC，Single Cylinder Hydraulic Cone Crusher is supplied with the world’s most advanced crushing technology. By integrating mechanical, hydraulic, electrical, and intelligent control systems, this crusher achieves superior performance in medium, fine, and ultra-fine crushing applications. The new laminated crushing chamber, robust structure, and automated control system make it a top choice for industrial mineral processing worldwide.

Primary Features and Gains

· Simple Structure & High Reliability: Robust and easy to maintain.

· High Efficiency & Large Capacity: Reduces energy consumption and operational cost.

· Extended Liner Life: Constant cavity design ensures longer service life.

· Convenient Maintenance: Rolling mortar wall can be replaced without filler.

· Automation & Safety: PLC + touch screen system ensures secure operation.

· Versatile Applications: Suitable for mining, metallurgy, construction, chemical, and aggregate industries.

Product Parameter

Model	Cavity type	Size of feeding port (mm)	Minimum discharge port size (mm)	processing capacity (th)	Maximum installed power (kw)	Overall dimension (mm)
LMG90	S1(Extra coarse)	240	22	85-170	90	1550×1575×2545
	S2(Medium coarse)	200	19	70-130		1550×1575×2545
	H1(Fine)	135	10	45-115		1550×1575×1965
	H2(Medium fine)	65	8	35-80
	H3(Extra fine)	35	4	27-60
LMG160	S1(Extra coarse)	360	25	120-345	160	1875×1920×3195
	S2(Medium coarse)	300	22	105-305
	S3(Coarse)	235	19	90-275
	H1(Fine)	185	13	66-210		1875×1920×2400
	H2(Medium fine)	90	10	65-165
	H3(Extra fine)	50	6	48-105
LMG250	S1(Extra coarse)	450	35	255-605	250	2100×2320×4096
	S2(Medium coarse)	400	29	215-515
	S3(Coarse)	300	25	190-490
	H1(Fine)	215	16	110-395		2100×2320×2780
	H2(Medium fine)	110	13	115-340
	H3(Extra fine)	70	8	90-255
LMG315	S1(Extra coarse)	560	41	335-1050	315	2380×2735×4630
	D2(Medium coarse)	500	38	305-895		2380×2735×4630
	H1(Fine)	275	16	170-665		2380×2735×3265
	H2(Medium fine)	135	16	190-505
	H3(Extra fine)	65	13	205-320
LMG450	S1(Extra coarse)	560	54	500-1300	450	2906×3187×4582
LMG450	S2(Medium coarse)	465	51	450-1200	450	2906×3187×4582
LMG560	H1(Fine)	300	22	430-1515	560	3780×2341×4531
	H2(Medium fine)	155	19	380-1375
	H3(Extra fine)	80	10	270-775
LMG750	H1(Fine)	370	25	460-2130	750	3100×3623×5305
	H2(Medium fine)	195	22	525-1605
	H3(Extra fine)	85	10	350-885

How Does EPIC Compare to Ordinary Cone Crushers?

Feature	EPIC Single Cylinder Hydraulic Cone Crusher	Ordinary Cone Crusher	Advantage
Crushing Efficiency	High, uniform output	Medium, uneven output	Up to 30% higher productivity
Energy Consumption	Low	High	Save energy and cost
Maintenance	Easy, minimal downtime	Complex, frequent	Reduces labor and downtime
Automation	PLC + touch screen control	Manual adjustments	Safer and smarter operation
Liner Life	Constant cavity type	Traditional type	Longer service life
Versatility	Medium, fine, ultra-fine crushing	Limited	Broader application range

The Benefits of EPIC

· Integrated Design of Single Cylinder Hydraulic Cone Crusher combining mechanical, hydraulic, electrical, and intelligent control technologies.

· Optimized Laminated Crushing Chamber for high efficiency and superior particle shape.

· Durable Components with rolling mortar wall and high-strength materials.

· User-Friendly Maintenance with quick replacement parts.

· Automation & Safety using PLC touch screen control.

· Energy Efficiency with large capacity and low power consumption.

Why Do Customers Trust EPIC?

· High Efficiency: Optimized laminated crushing chamber ensures high throughput and uniform product size.

· Reliable Performance: Simple structure and robust design guarantee consistent operation under heavy-duty conditions.

· Extended Liner Life: Constant cavity design and rolling mortar wall minimize wear, increasing service life.

· Easy Maintenance: Quick replacement of parts and minimal downtime reduce labor and maintenance costs.

· Automation & Safety: PLC touch screen control enables intelligent monitoring and safe operation.

· Certified Quality: ISO9001:2015 certified, with patented technologies ensuring high standards of production.

· Global Service & Support: 24/7 technical assistance, spare parts supply, installation guidance, and after-sales support worldwide.

FAQ

· Q: What industries can use this crusher? A: Mining, metallurgy, construction, chemical, aggregates, and cement.

· Q: Is the crusher energy-efficient? A: Yes, high crushing efficiency with low power consumption reduces operational costs.

· Q: How often does maintenance need to be performed? A: Minimal downtime is required thanks to the simple structure and easy-to-replace liners.

EPIC Single Cylinder Hydraulic Cone Crusher integrates advanced hydraulic, mechanical, electrical, and intelligent control technologies to deliver superior crushing efficiency, reliability, and cost-effectiveness. From medium crushing to ultra-fine applications, it stands as a leading choice in the mining and construction industries worldwide.
