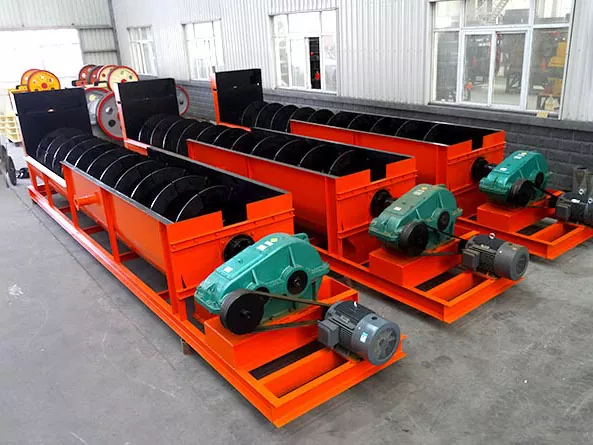

Spiral Sand Washer

EPIC, a trusted China factory and manufacturer, provides the durable Spiral Sand Washer, delivering top-quality washing and classification of sand and stone materials. Its advanced wheel bucket, frame, and transmission system ensure high-efficiency operation, while the anti-wear spiral blade reduces use costs. Designed for various industries, it supports both fine and coarse materials. The machine features adjustable overflow plates, optimized spiral speed, and an advanced sealing structure, ensuring low maintenance, accurate washing, and long-term reliability for large-scale production.

Structural Components and Working Principle

The Spiral Sand Washer is composed of three main components:

1. Wheel Bucket – Lifts sand and stone materials from the tank and ensures continuous washing.

2. Supporting Frame – Holds the wheel bucket and transmission system, forming a stable sand washing tank.

3. Transmission Device – Powers the spiral rotation, ensuring efficient material handling and discharge.

During operation, sand and stone are immersed in water and lifted by the spiral wheel. The materials are continuously agitated, allowing impurities and fine sediments to separate and flow out with the water, while heavier and clean materials are discharged via the conveyor system. This ensures thorough washing and classification in a single cycle.

Key Design Features:

· Optimized Drainage Trench: Ensures water is efficiently removed from washed materials, producing dry, high-quality sand.

· Material Guide Plate: Professionally designed and combined with an adjustable long overflow weir plate for precise classification.

· Advanced Sealing Structure: Reduces maintenance needs and prevents operational leaks.

· Durable Spiral Blade: Anti-wear material guarantees long-term use and lowers operational costs.

Technical Specifications

It is available in multiple models to meet a range of production capacities. Below is a detailed table of technical parameters:

Applications

The Spiral Sand Washer is widely used in multiple industries requiring high-quality sand and stone washing. Main application areas include:

· Construction Industry: Produces clean sand for concrete and masonry work.

· Metallurgical Industry: Removes impurities, improving raw material quality for further processing.

· Water Engineering Projects: Delivers high-quality sand for dams, canals, and river construction.

· Hydropower and Energy Projects: Handles coarse and fine materials used in power plant infrastructure.

Its versatility allows seamless integration into both small-scale operations and large industrial plants.

Advantages

1. High Washing Efficiency: Optimized spiral speed ensures accurate material classification and thorough impurity removal.

2. Durable and Low-Maintenance: Anti-wear spiral blades and advanced sealing reduce downtime and maintenance expenses.

3. Improved Material Recovery: Enhanced water drainage and precise classification minimize material loss.

4. Operational Safety: Robust construction and stable transmission system ensure safe, reliable operation.

5. Adaptable Design: Multiple models cater to fine sand, medium, and coarse aggregates, offering flexibility for various projects.

Installation and Operation Guidelines

To maximize the efficiency and lifespan, proper installation and operational procedures must be followed:

· Level Foundation: Ensure installation on a stable, level surface to prevent vibrations.

· Power Compatibility: Verify electrical supply matches machine specifications.

· Water Supply: Maintain a consistent water flow to optimize washing and classification.

· Routine Inspection: Regularly check spiral blades, transmission devices, and sealing structure.

· Maintenance Protocol: Replace worn components with genuine EPIC parts for consistent performance.

Correct installation and operation practices enhance efficiency, reduce costs, and prevent unplanned downtime.

Maintenance and Longevity

Consistent maintenance ensures long-term operational stability and minimizes unexpected repair costs:

· Spiral Blade Inspection: Regularly monitor for wear and replace when necessary.

· Lubrication: Maintain lubrication for all moving parts per manufacturer guidelines.

· Tank Cleaning: Periodically remove sediment buildup in the sand washing tank.

· Sealing Checks: Inspect and replace seals to prevent water leakage and maintain efficiency.

Following these practices ensures the Spiral Sand Washer continues to deliver high-quality output and optimal operational reliability.

Why Choose EPIC

EPIC emphasizes reliability, performance, and durability in every product produced. The equipment is designed with high-grade materials and engineering precision to ensure consistent washing efficiency while minimizing operating costs. With multiple models available, EPIC provides solutions for a variety of sand and stone washing applications, from fine sand for construction projects to coarse aggregates in hydropower and mining operations.

EPIC offers:

· Technical Support: Expert guidance for installation, operation, and maintenance.

· After-Sales Service: Rapid response for troubleshooting and replacement parts.

· Proven Reliability: Designed to meet industry standards and ensure long-term operation.

The Spiral Sand Washer from EPIC guarantees enhanced material quality, operational efficiency, and low maintenance costs. Customers worldwide rely on EPIC for high-performance sand washing equipment that supports both productivity and sustainability.
