U Groove Froth Flotation Cell

A professional China factory and supplier of superior quality-EPIC presents the U Groove Froth Flotation Cell, designed for high-efficiency mineral separation. The product combines innovative impeller technology, excellent air dispersion, and energy-saving operation, maintaining solids in suspension while reducing reagent consumption. With XCF/KYF horizontal configuration, the flotation cell allows self-suction feeding and minimal maintenance. It suits diverse ores like copper, zinc, and gold, ensuring stable recovery and cost-effective operation in large-scale processing plants.

Advanced Technology

The U Groove Froth Flotation Cell is a highly efficient mineral processing equipment designed to meet the rigorous demands of modern mining operations. Combining innovative engineering with decades of operational expertise, it ensures optimal ore recovery while minimizing energy consumption. With a unique double inverted conical table impeller design and backward blade structure, it achieves superior air dispersion and solid suspension. The central air distributor within the impeller significantly enhances flotation efficiency, making this product stand out among similar flotation equipment.

Unique Design Features

· Self-Suction Capability: The flotation cell can self-suction ore feeding and mid-ore return without requiring a foam pump in XCF models, allowing flexible and energy-efficient operations.

· Interchangeable XCF/KYF Units: By pairing XCF and KYF units, horizontal configurations are enabled, optimizing flotation functions and reducing the need for additional foam pumps.

· Energy Efficiency: Less energy consumption compared to traditional models due to advanced impeller design acting as a centrifugal pump, keeping solids suspended and ensuring uniform air dispersion.

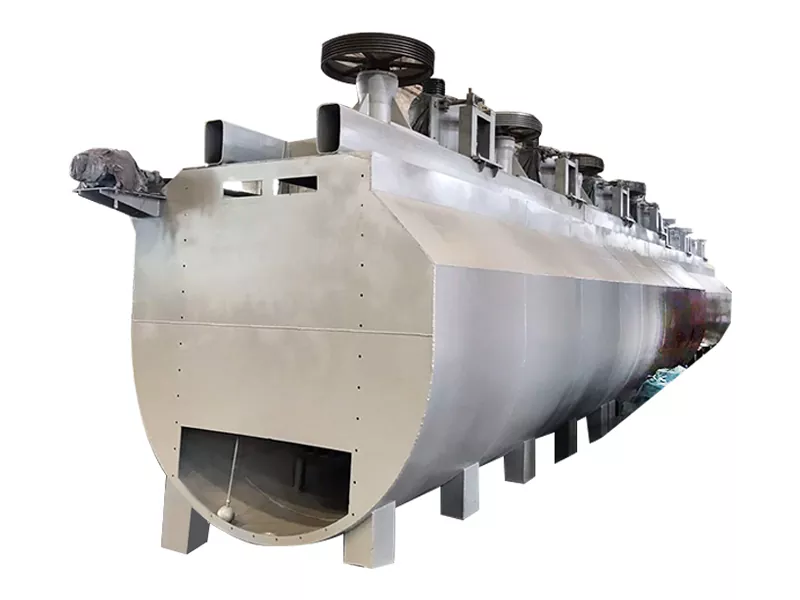

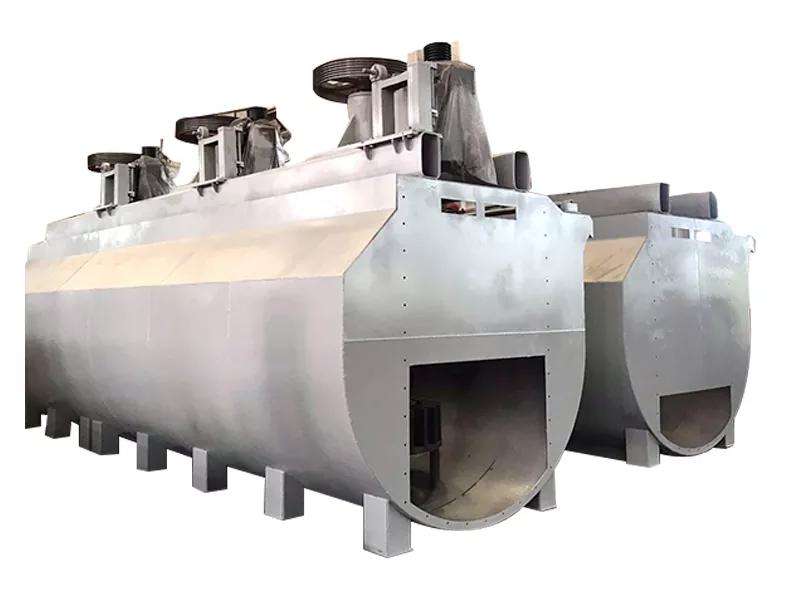

· Reduced Wear and Maintenance: The robust U-shaped tank reduces circuit breaker circulation and minimizes wear on moving parts, lowering maintenance costs.

The U Groove Froth Flotation Cell is ideal for various flotation tasks in mineral processing plants, including copper, zinc, lead, nickel, and gold ores. It maintains suspension efficiently while providing precise slurry level control, reducing reagent consumption and increasing process stability.

Technical Parameters

It is available in multiple models, catering to processing capacities ranging from small-scale laboratories to large industrial operations. Each model is designed with optimized impeller diameter, tank size, and rotational speed to maximize flotation efficiency.

Operational Advantages

The product delivers outstanding operational benefits across various mineral processing scenarios:

1. Optimized Solid-Liquid Suspension: The impeller’s centrifugal pumping effect ensures solid particles remain suspended, avoiding sedimentation and improving flotation efficiency.

2. Flexible Configuration: XCF/KYF units allow horizontal configurations, enabling a mix of suction and DC tanks for enhanced performance without the need for foam pumps.

3. Reduced Chemical Usage: Advanced design reduces flotation agent consumption, cutting operating costs while maintaining high recovery rates.

4. Low Maintenance Requirements: Simple tank structure, minimized wear, and modular components make it easy to maintain and operate.

5. Advanced Slurry Control: The product supports precise slurry level management, providing reliable flotation outcomes under varying operational conditions.

This equipment’s combination of efficiency, flexibility, and energy savings makes it a preferred choice for large-scale flotation circuits globally.

Applications and Industry Relevance

The U Groove Froth Flotation Cell is widely applied in:

· Base Metals: Copper, zinc, lead

· Precious Metals: Gold, silver

· Industrial Minerals: Nickel, tin, molybdenum

· Specialty Processing: Rare earths and complex polymetallic ores

Its versatility in handling both roughing and scavenging stages, along with its capacity for precise control, ensures maximum recovery and minimal operational cost. Operators can rely on it for stable performance in continuous production environments.

Energy Efficiency and Sustainability

Environmental and energy considerations are crucial in modern mineral processing. The product incorporates energy-efficient impeller design, optimized air distribution, and precise slurry management to reduce both electrical consumption and chemical usage. Less mechanical wear results in fewer spare parts replacements, extending the lifespan of the product and reducing environmental impact. By combining XCF and KYF units, flotation circuits can operate without auxiliary foam pumps, further minimizing energy demands and maintenance requirements.

Why Choose This Product

1. Proven Technology: Based on decades of industry experience, it ensures reliable flotation performance.

2. Versatility: Compatible with multiple ore types and processing stages.

3. Operational Efficiency: Minimizes energy and chemical usage while maximizing recovery.

4. Ease of Maintenance: Simple design, easy installation, and straightforward operation.

5. Scalable Solutions: Available in capacities from 2 m³ to 100 m³ to meet any plant size.

The U Groove Froth Flotation Cell is a technologically advanced flotation solution, delivering exceptional mineral recovery, operational efficiency, and sustainability. Its combination of innovative impeller design, energy-saving operation, and modular configuration ensures it meets the rigorous demands of modern mineral processing plants. EPIC Mining Equipment’s commitment to continuous innovation, reliability, and service excellence guarantees that this product provides outstanding value and long-term performance. Choosing it means investing in both advanced technology and trusted quality from a globally recognized leader in mineral processing equipment.
