Vertical Fine Grinding Mills For Graphite

EPIC, a leading China factory and supplier of Vertical Fine Grinding Mills For Graphite, provides premium quality grinding solutions. The equipment features a cylinder with a disk mixer, driven to create multi-dimensional grinding action. It achieves ultra-fine particle sizes, operates efficiently with low vibration and noise, and can work intermittently, circularly, or continuously. Compact in design, easy to maintain, and cost-effective, it is perfect for modern graphite processing plants seeking energy-saving, high-performance milling equipment.

Features and Advantages

High-Precision Grinding Performance

The Vertical Fine Grinding Mills For Graphite is designed to deliver ultra-fine grinding with precision. The machine can effectively grind materials down to 10μm or finer, ensuring high-quality graphite powders for diverse applications. The innovative design combines the principles of tower mill strippers and sand mills to provide superior particle size uniformity, improved throughput, and reduced energy consumption.

Energy Efficiency and Cost Savings

One of the most significant benefits of this equipment is its low energy consumption, which saves more than 50% energy compared with ordinary horizontal ball mills. The energy-efficient design ensures reduced operational costs while maintaining optimal grinding performance. Additionally, the machine can be operated in intermittent, circular, or continuous modes, providing flexibility for different production requirements.

Stable Operation and Low Noise

The equipment operates with low vibration and a noise level lower than 85 dB. Its stable performance ensures minimal wear and tear, reducing maintenance costs and prolonging service life. The simple structure allows for easy operation, maintenance, and cleaning, making it suitable for various industrial applications.

Compact and Space-Saving Design

Designed with practicality in mind, the mill features a compact footprint, saving valuable floor space and reducing the required capital investment. The equipment frame is robust yet compact, supporting the cylinder, disc mixer, and transmission device efficiently. The cylinder is filled with suitable grinding media, such as steel balls, corundum balls, or gravel, enabling a high-intensity multi-dimensional grinding motion.

Technical Specifications

Working Principle

The Vertical Fine Grinding Mills For Graphite operates through a combination of heavy-pressure grinding, friction, impact extrusion, and shear forces. The disk agitator is driven by a triangular belt to rotate slowly, generating multi-dimensional circular motion inside the cylinder. The grinding media and materials move in complex patterns, exchanging positions vertically and horizontally, which ensures fine and uniform grinding.

The cylinder’s internal environment promotes high-efficiency energy transfer, maximizing grinding effectiveness. The machine's innovative mechanics reduce over-grinding and allow precise control over particle size distribution, which is critical for high-purity graphite production.

Operational Advantages

· Adjustable Product Granularity: The mill allows precise control of particle size, ensuring consistent quality for downstream processing.

· Flexible Production Modes: Capable of intermittent, circular, and continuous operation, it accommodates varying production schedules.

· Reliable Structure: Designed for stability and low vibration, reducing operational wear.

· User-Friendly Maintenance: Simple assembly and accessible components ensure easy cleaning and maintenance.

· Minimal Footprint: Requires less space compared to conventional horizontal mills, ideal for modern industrial setups.

Application Scope

The equipment is suitable for industries requiring ultra-fine graphite powders, such as:

· Battery materials (lithium-ion batteries)

· Refractory materials

· Lubricants and greases

· Electronics and conductive materials

· Coatings and composite materials

Its high efficiency, low energy consumption, and precision make it an ideal solution for modern graphite processing plants aiming for superior product quality.

Operational Safety and Standards

EPIC prioritizes equipment. All equipment is designed according to international safety standards. Noise is maintained below 85 dB, vibration is minimal, and all moving parts are well-protected. The equipment passes rigorous testing to ensure safe and reliable operation for industrial-scale applications.

· Durable Components: High-quality steel and corrosion-resistant materials extend the lifespan of the machine.

· Certified Performance: Engineered to comply with ISO and industry-specific certifications.

· Low Maintenance Downtime: Designed for long-term continuous operation with minimal interruptions.

Installation and Commissioning

EPIC provides complete installation and commissioning services for the Vertical Fine Grinding Mills For Graphite, ensuring seamless integration into your production line. Professional technicians guide the setup process and provide training to operational staff, ensuring:

· Accurate alignment of the cylinder and disk mixer

· Correct setup of the transmission system

· Verification of grinding media selection

· Calibration for optimal particle size output

These services ensure that the equipment reaches peak performance from day one.

Key Benefits Summary

1. Efficient ultra-fine grinding to 10μm or finer

2. Energy-saving operation, reducing costs by over 50%

3. Adjustable granularity for consistent product quality

4. Flexible operational modes (intermittent, circular, continuous)

5. Compact design saving floor space and investment costs

6. Low noise and vibration for safe industrial operation

7. Easy maintenance and reliable long-term performance

Why Choose EPIC?

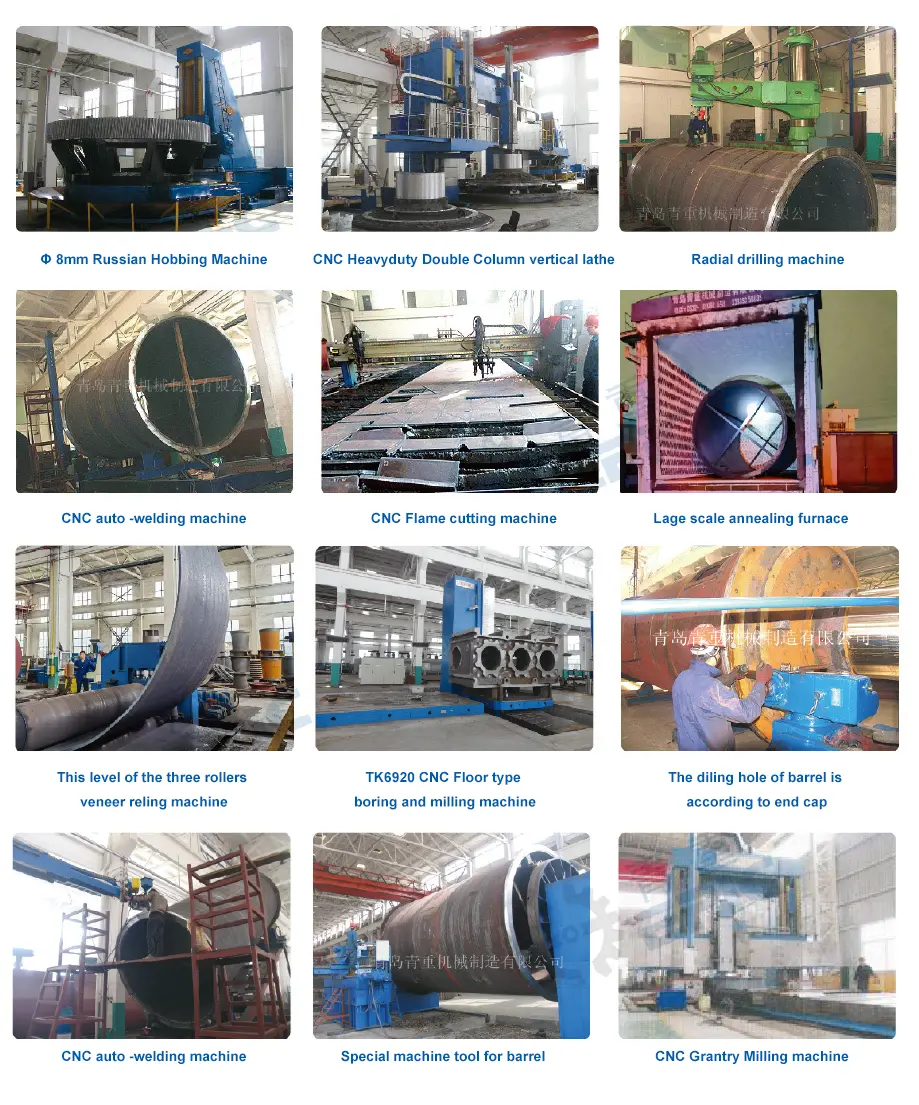

EPIC has established itself as a trusted China manufacturer and supplier of Vertical Fine Grinding Mills For Graphite. With over 500 employees, including highly skilled engineers and designers, EPIC combines advanced manufacturing equipment, innovative design, and decades of experience. Customers around the world rely on EPIC for:

· High-quality machinery

· Efficient, energy-saving designs

· Customized solutions for diverse applications

· Reliable service and support
