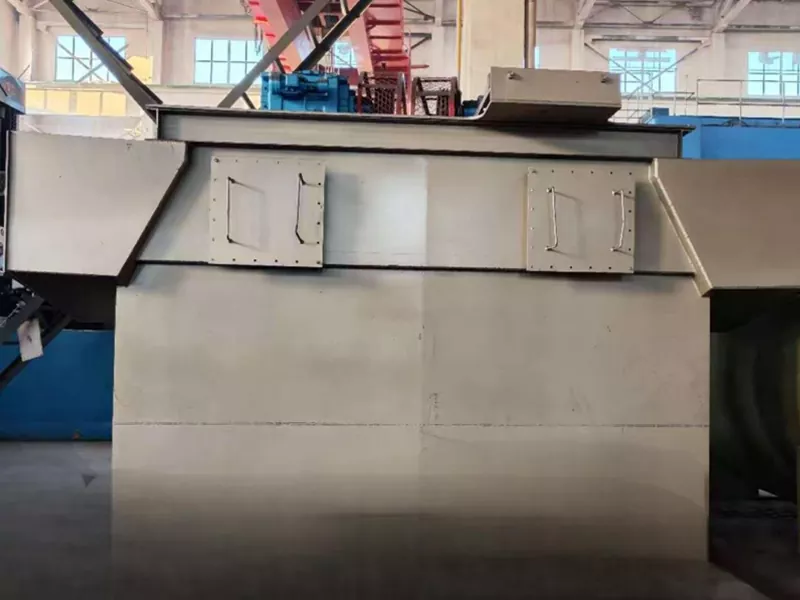

Vertical Stirred Mill

EPIC , a renowned China factory and supplier, provides the premium Vertical Stirred Mill, engineered for high-efficiency fine grinding and ultrafine processing. The equipment achieves precise particle size control through adjustable stirring speed, medium size, and grinding time. With compact design, low noise, energy efficiency, and strong material adaptability, it ensures reliable operation across various materials. Its advanced automation simplifies operation and maintenance, making it an indispensable solution for modern mineral processing.

Advantages

High Efficiency and Energy Saving

Compared to traditional ball mills, Vertical Stirred Mill consumes significantly less energy while delivering higher throughput. The unique vertical design reduces energy loss, allowing for more cost-effective operations and lower operational expenses.

Controllable Product Fineness

The fineness of the final product can be precisely controlled by adjusting the stirring speed, grinding medium size, and processing time. This flexibility ensures consistent results across a wide range of materials.

Compact and Space-Saving Design

Its vertical configuration occupies minimal floor space, making it suitable for installations in areas with limited space. Despite the compact structure, the mill maintains high grinding capacity and reliability.

Easy Operation and Maintenance

The product is highly automated, allowing for simple operation, monitoring, and maintenance. Operators can manage the grinding process efficiently with minimal training, reducing downtime and operational risks.

Environmentally Friendly Performance

With low noise emission and reduced dust pollution during operation, the mill complies with strict environmental standards. It provides a safer and cleaner working environment for production facilities.

Broad Material Adaptability

The equipment is capable of handling materials with varying hardness levels, including abrasive and high-density ores. Its versatility ensures stable performance across multiple industries.

Working Principle

The Vertical Stirred Mill operates through a systematic process of feeding, grinding, classification, and discharging. Its working principle can be outlined as follows:

Step 1 – Feeding

Raw materials are introduced into the grinding chamber via the feed port. Uniform material distribution ensures optimized grinding efficiency.

Step 2 – Stirring and Grinding

The agitator rotates the grinding medium, such as steel or ceramic balls, at high speeds. Friction, impact, and shear forces generated by this motion efficiently reduce material particle size to the desired level.

Step 3 – Classification

Ground material passes through an integrated classification device. Particles meeting the target fineness are discharged, while coarse materials remain for further grinding. This ensures consistent product quality and reduces overgrinding.

Step 4 – Discharging

Finely ground materials exit the mill through the discharge port. This continuous process allows for steady operation, high throughput, and minimal interruptions in production.

Technical Parameters

The following table provides an overview of commonly used equipment models and their specifications:

Operational Guidelines and Maintenance Recommendations

Installation

Proper installation is critical for optimal performance. Ensure the Vertical Stirred Mill is positioned on a stable foundation, aligned precisely, and connected securely to the power supply and feed/discharge systems. Correct alignment reduces vibration and enhances operational life.

Daily Operation

Operators should regularly monitor the rotational speed, feed rate, and grinding medium condition. Adjustments can be made to maintain desired product fineness and throughput. Automated systems simplify control and minimize human error.

Lubrication and Wear Management

Regular lubrication of bearings and moving parts is essential to avoid frictional wear and prolong service life. High-wear components, such as agitator shafts and grinding media, should be periodically inspected and replaced to maintain consistent performance.

Safety Precautions

The equipment is designed with multiple safety features, including emergency stops and protective covers. Operators should follow standard safety protocols, wear appropriate personal protective equipment, and adhere to maintenance schedules.

Applications Across Industries

The versatility of the equipment makes it suitable for a wide range of applications:

· Mining and Metallurgy: Fine grinding of ores such as gold, copper, iron, and non-ferrous metals.

· Chemical Industry: Grinding chemical raw materials, catalysts, and pigments to precise particle sizes.

· Non-Metallic Minerals: Processing kaolin, feldspar, quartz, and other minerals for industrial applications.

· Advanced Materials: Production of ultra-fine powders for ceramics, coatings, and high-tech materials.

Its precision, energy efficiency, and environmental compliance make the mill an essential tool for modern industrial processes.

Environmental and Energy Efficiency Considerations

Energy-Saving Design

The Vertical Stirred Mill reduces energy consumption by maximizing the efficiency of grinding through optimized agitation and media selection. Compared to traditional ball mills, it achieves higher throughput at lower power requirements.

Noise and Dust Reduction

Its enclosed design minimizes dust emissions, and noise levels are considerably lower than conventional grinding equipment. These features align with sustainable production goals and regulatory compliance.

How to Choose the Right product？

When selecting the correct model, consider:

1. Material Hardness: Harder materials may require a larger mill or higher-speed configuration.

2. Desired Particle Size: Adjusting agitation speed and medium size allows precise control of fineness.

3. Throughput Requirements: Select a model that aligns with production capacity to optimize efficiency.

4. Installation Space: The compact vertical design allows for efficient use of floor space in existing plants.
