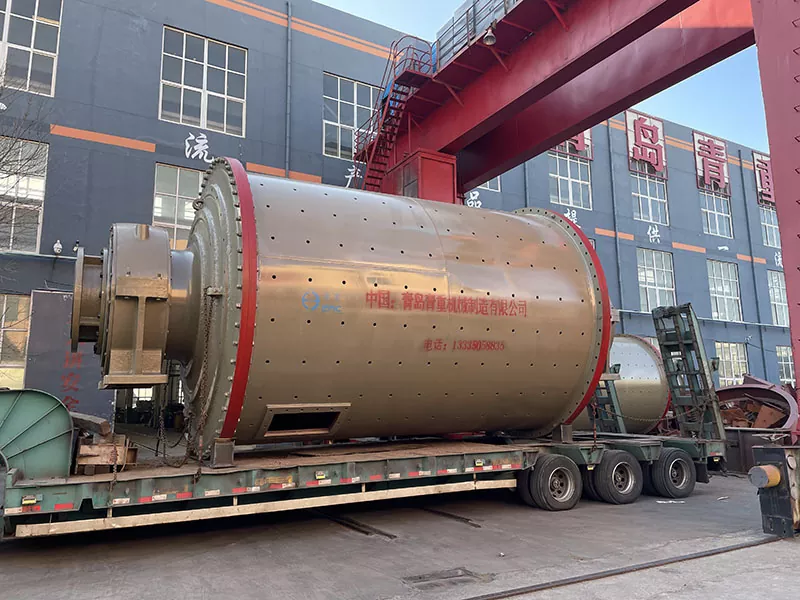

Wet Grinding Overflow Ball Mill

EPIC, a renowned China factory and supplier, presents the Wet Grinding Overflow Ball Mill with guaranteed quality. Designed for high-efficiency ore grinding, it incorporates advanced rolling bearings to lower friction, enhance durability, and save energy. With large discharge ports, wave liners, and an oil mist lubrication system, this equipment provides smooth operation, easy maintenance, and reliable output. Ideal for mining, mineral processing, and industrial applications, it ensures consistent, energy-efficient, and high-capacity production.

Key Features and Advantages

Rolling Bearings for Reduced Friction

The Wet Grinding Overflow Ball Mill adopts large double-row spherical roller bearings, which significantly reduce friction between the moving parts. This design allows for smoother operation, easier startup, and maintenance, while achieving notable energy savings.

Optimized Grinding Efficiency

Equipped with a wave liner, the mill increases the contact surface between grinding media and ore, strengthening the grinding effect. It also improves lifting ability for materials inside the cylinder, which contributes to higher throughput and lower energy consumption.

Large Capacity and Flexible Operation

The product features a large discharge port that supports higher production capacity, ranging from 0.5 t/h for small models up to 800 t/h for large units. The integral frame design facilitates civil construction and equipment installation, especially for units with a diameter of 2.1 meters or less.

Advanced Lubrication System

An oil mist lubrication device ensures reliable lubrication of all large and small gears, preventing downtime and extending the service life of the equipment.

Working Principle

The product operates on a combination of impact and self-grinding principles. Material enters the cylinder at the feeding end and, driven by the rotation of the cylinder, experiences impact from the steel balls and self-grinding within the ore itself. Continuous feeding creates pressure, moving the material from the feeding end to the discharge end.

The overflow discharge design ensures that slurry naturally flows over the hollow shaft at the discharge end. Anti-spiral blades in the hollow shaft return oversized balls and coarse ore back into the mill for further grinding. The structure includes multiple components:

· Feeding part

· Main bearing

· Rotary part

· Transmission system (large and small gears)

· Air clutch

· Main motor and slow transmission device

· Jacking device

· Lubrication system

· Electric control system

This integrated design allows it to maintain stable operation, high efficiency, and reduced maintenance needs, making it suitable for continuous, large-scale processing.

Model Specifications

The following table presents detailed parameters for EPIC Wet Grinding Overflow Ball Mill, ensuring you select the best fit for your operation:

Energy-Saving and Maintenance Benefits

1. 20–30% Energy Reduction: By using rolling bearings instead of sliding bearings, it reduces friction and operational energy costs.

2. Durable Liners: Wave liners improve grinding efficiency and reduce wear, minimizing downtime.

3. Easy Installation: Integral frame design supports quick installation and stable operation.

4. Reliable Lubrication: Oil mist lubrication system protects gears and bearings, extending service life.

The Wet Grinding Overflow Ball Mill also allows operators to optimize the grinding circuit with minimal manual intervention, ensuring reliable, continuous production.

Application and Industry Use

This product is widely applied in:

· Mining operations for grinding gold, copper, and other ores

· Mineral processing plants requiring fine grinding

· Industries aiming to reduce operational energy costs and maintenance

· Projects that demand high-capacity, continuous operation equipment

It is particularly suited for projects where energy efficiency, reliability, and long-term performance are critical.

Why Choose EPIC?

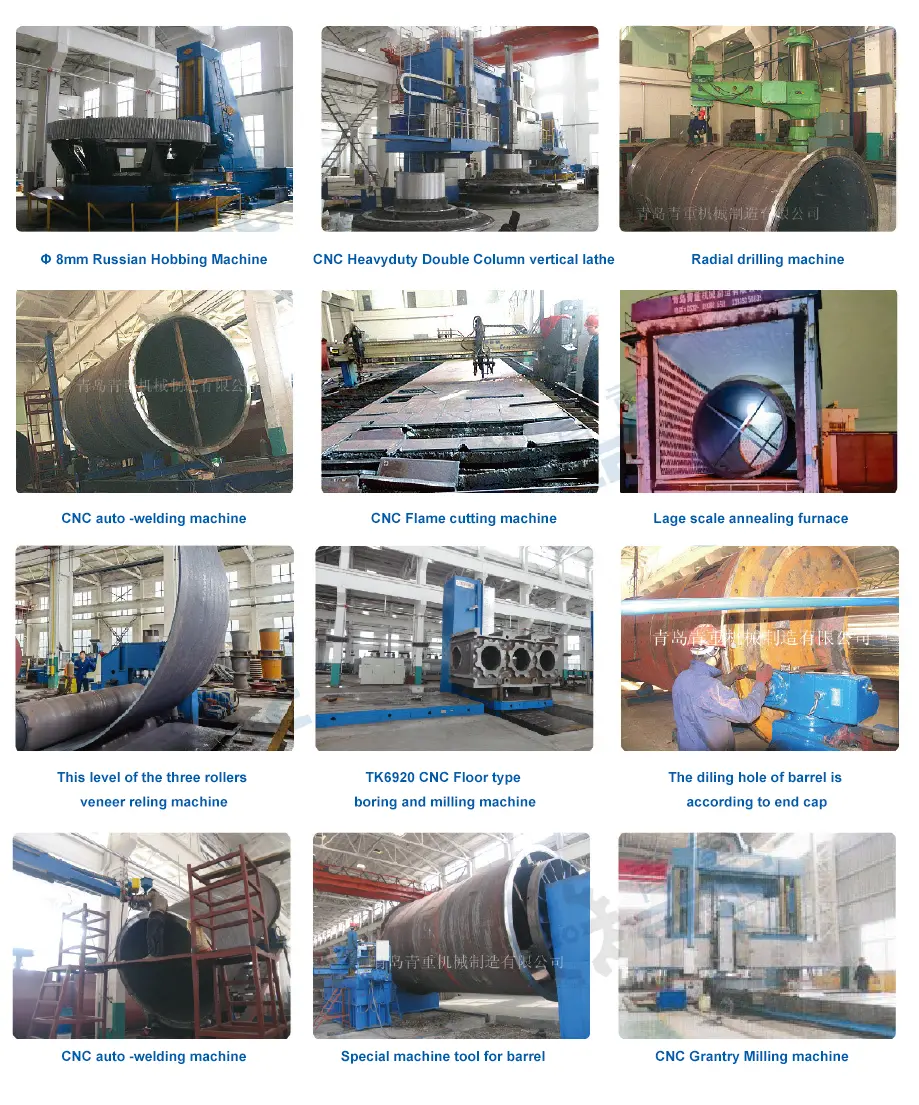

EPIC is recognized as a leading Chinese manufacturer and supplier of mineral processing equipment. Choosing EPIC ensures:

· Experience and Expertise: Decades of specialized engineering in grinding mill design.

· Quality Assurance: Durable materials, rigorous testing, and strict quality control.

· Professional Support: Consultation, installation guidance, and after-sales service.

· Custom Solutions: Tailored equipment for specific ore types, production capacities, and operational requirements.

The EPIC Wet Grinding Overflow Ball Mill represents a reliable, energy-efficient, and high-performance solution for mining and mineral processing industries worldwide. Its combination of advanced rolling bearing technology, optimized grinding design, and robust structure makes it the ideal choice for modern operations seeking long-term productivity and cost savings.
