Energy Saving Grate Ball Mill

Energy Saving Grate Ball Mill is supplied by a professional manufacturer--EPIC , offering a reliable, high-performance solution for grinding coarse ores. As a top export product, this ball mill integrates advanced technology, energy efficiency, and robust construction to meet modern mineral processing demands.

Product Parameter

Why Choose Our Grate Ball Mill？

Applications

· Coarse ore grinding in gold, copper, iron, and other non-ferrous and ferrous mining operations.

· Suitable for large-scale mineral processing plants requiring high throughput and consistent particle size.

· Used in both wet and dry grinding processes for improved flexibility and efficiency.

How the Grate Ball Mill Works

The EPIC Grate Ball Mill rotates slowly through a transmission device. Material is fed from the cylinder’s feeding end. Inside, steel balls impact the material and assist self-grinding. Continuous feed drives the material toward the discharge end. A grid plate forces ore out while preventing steel balls from discharging, ensuring minimal over-grinding. Rolling bearings at both ends replace sliding bearings, significantly lowering energy consumption.

Key Features in Operation:

1. Grooved annular liner maximizes ball-ore contact surface, improving grinding efficiency.

2. Large double-row spherical roller bearings reduce startup resistance and friction.

3. Oil mist lubrication ensures continuous and reliable operation of gears.

4. Designed for large production capacity, up to 160t/h.

5. Flexible installation: small units (<2.1m diameter) adopt an integral frame for convenient civil construction.

Energy-Saving Advantages

· Optimized grinding effect:

Corrugated liners lift material, enhancing grinding while reducing energy.

· Lower operational costs:

Rolling bearings of Energy Saving Grate Ball Mill reduce friction, saving 20-30% energy.

· Higher productivity:

Large discharge ports and controlled over-grinding improve output.

· Maintenance-friendly:

Oil mist lubrication and modular components simplify upkeep.

Comparison with Market Alternatives

· EPIC's energy-saving design outperforms traditional overflow ball mills by minimizing over-grinding.

· Global exports demonstrate the product’s adaptability and performance across diverse mineral types.

· Customizable options for specific project needs allow precise control of particle size and grinding efficiency.

Project Case

A mineral processing plant in Southeast Asia needed a reliable grinding solution for coarse gold ore. Their existing overflow mill was over-grinding the material, causing high energy consumption and inconsistent particle size. They chose EPIC's Grate Ball Mill to replace it.

On-Site Verification

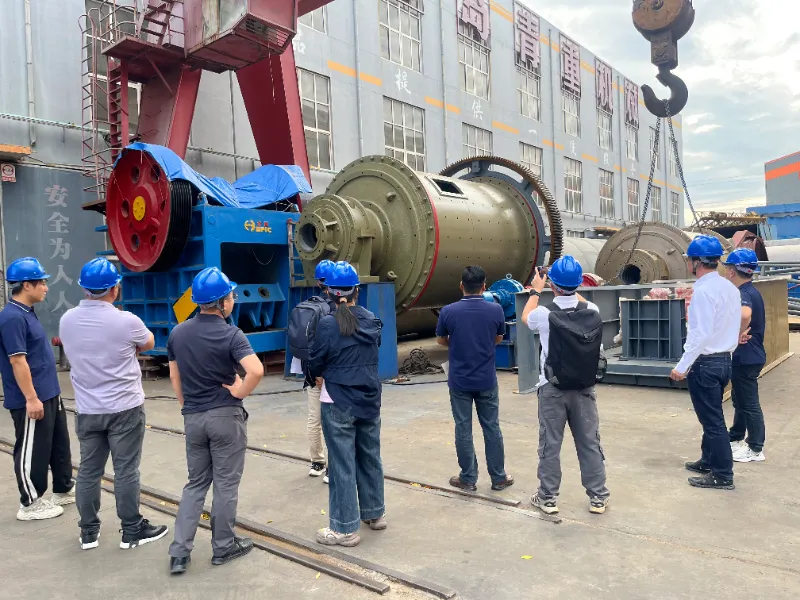

Before shipment, the client's technical team visited EPIC's Qingdao factory to inspect the mill. They focused on three things: the grate plate discharge system (to confirm it prevents steel balls from escaping while allowing coarse ore through), the grooved annular liner installation (to verify ball-ore contact surface), and the oil mist lubrication system on the girth gear and main bearings. The team also reviewed welding quality on the cylinder and the assembly tolerance of the large double-row spherical roller bearings.

Result

After acceptance, the mill was shipped and commissioned on site. The client reported stable operation, consistent discharge particle size, and a measurable reduction in energy consumption compared to their previous overflow mill. The project confirmed that for coarse ore grinding, the grate discharge design minimizes over-grinding and improves overall circuit efficiency.

Why Choose EPIC

1. Specialized in Coarse Grinding Equipment

EPIC has been manufacturing grinding mills since 1988, with a product line covering grate ball mills, overflow ball mills, autogenous mills, rod mills and stirred mills. For coarse grinding circuits, our engineering team understands how discharge method, liner profile and bearing type affect particle size distribution and energy consumption — and we configure each mill accordingly.

2. Rolling Bearing Technology Built In-House

Our Energy Saving Grate Ball Mill uses large double-row spherical roller bearings instead of sliding bearings. This design is not an add-on; it is engineered into the mill structure from the start, covering bearing seat machining, shaft alignment and lubrication routing. The result is 20–30% lower energy consumption and easier startup.

3. Grooved Annular Liner — Designed, Cast and Fitted by EPIC

The grooved annular liner is produced to EPIC's own drawings and fitted in our workshop. We control the groove profile, material hardness and fit tolerance, so the liner delivers consistent ball-ore contact and predictable wear life. Replacement liners are also available for after-sales service.

4. Full-Scale Production Capacity

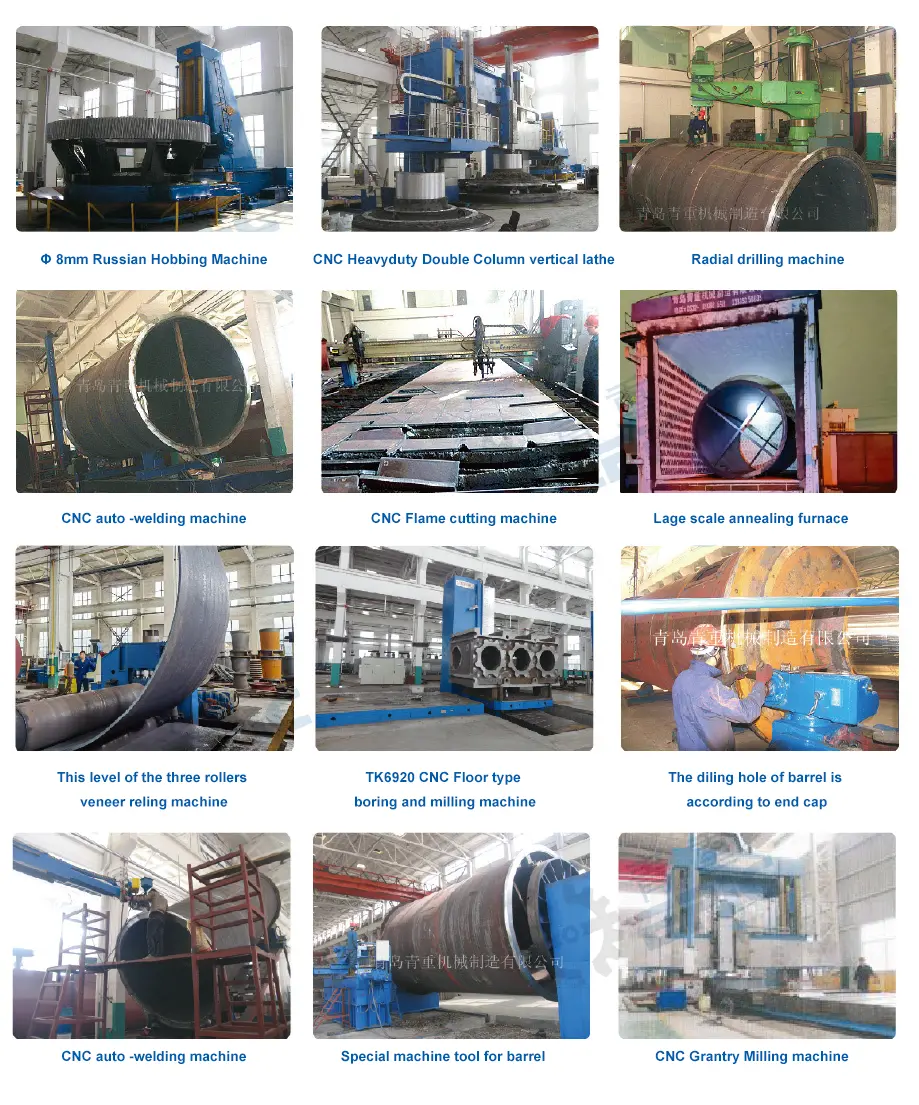

EPIC's Qingdao production base covers casting, machining, welding, assembly and testing. Grate ball mills up to 5.5 m cylinder diameter and 5,200 kW main motor power are manufactured in-house, with production capacity data verifiable at the factory.

5. Overseas Project Experience

EPIC's grinding mills are exported to Southeast Asia, South America, Africa, the Middle East and Central Asia. Our international business and technical teams support overseas projects from model selection, customization and factory inspection through to installation guidance and long-term maintenance.

6. Factory Inspection Welcome

Overseas clients are welcome to visit EPIC's Qingdao factory to inspect the grate plate discharge system, grooved annular liner, oil mist lubrication system, cylinder welding and bearing assembly before shipment. Technical talks cover ore type, feed size, target particle size, throughput, installation guidance and long-term maintenance.

7. Customization for Coarse Grinding Circuits

Every coarse grinding project has different ore characteristics, feed size and target particle size. EPIC provides customized configurations covering cylinder size, liner profile, bearing type, drive configuration, control system and discharge port design, based on your project parameters.

8. Spare Parts and After-Sales Support

EPIC supplies liners, grate plates, bearings, gears and other wear parts for the full service life of the mill. Custom patterns are filed for reorders. Long-term clients receive priority service on spare parts and technical support.

FAQ

Q1: What is the difference between a grate ball mill and an overflow ball mill?

A grate ball mill discharges material through a grate plate at the discharge end, which holds back steel balls while letting coarse ore pass. An overflow ball mill discharges slurry through a hollow shaft, relying on slurry level. Grate mills are better for coarse grinding and reduce over-grinding; overflow mills are better for fine grinding.

Q2: What is the Grate Ball Mill used for?

It is used for coarse ore grinding in mineral processing plants, especially for gold, copper, iron and other ferrous and non-ferrous ores. It is suitable for large-scale plants that need high throughput (up to 160 t/h) and consistent particle size, and works in both wet and dry grinding circuits.

Q3: How does the grate plate prevent steel balls from discharging?

The grate plate has slots sized smaller than the steel balls but large enough for ore particles to pass. As the mill rotates, ore is pushed through the slots by the continuous feed, while steel balls remain inside the cylinder for further grinding. This design minimizes over-grinding and keeps the grinding media in the mill.

Q4: What is the capacity range of EPIC's Grate Ball Mill?

The standard model supports up to 160 t/h. EPIC also offers larger models for high-throughput mineral processing plants. For project-specific capacity, send us your ore type, feed size, target particle size and required output, and our engineers will recommend the right model.

Q5: How much energy can the rolling bearing design save?

By replacing conventional sliding bearings with large double-row spherical roller bearings, the mill reduces startup resistance and friction, cutting energy consumption by 20–30%. It also lowers startup torque, which means smoother starts and less stress on the motor and transmission system.

Q6: What is a grooved annular liner and why does it matter?

A grooved annular liner is a corrugated liner plate installed inside the cylinder. Its grooves increase the contact surface between grinding media and ore, and improve material lifting inside the mill. This results in higher grinding efficiency, better particle size control and lower energy consumption per ton of ore.

Q7: What is the difference between EPIC's grate ball mill and an ordinary ball mill?

EPIC's grate ball mill uses rolling bearings instead of sliding bearings, a grooved annular liner instead of a flat liner, and an oil mist lubrication system instead of manual lubrication. These three changes deliver 20–30% energy savings, higher throughput and lower maintenance compared to ordinary ball mills.

Q8: Can the mill be customized for a specific ore type or project?

Yes. EPIC provides customized solutions based on ore type, feed size, target particle size, throughput, site altitude, power supply and installation conditions. Custom options include cylinder size, liner profile, bearing type, drive configuration and control system, plus on-site installation guidance and long-term maintenance support.

Q9: What is the installation requirement for the grate ball mill?

For units with a cylinder diameter less than 2.1 m, EPIC uses an integral frame design that simplifies civil construction and shortens installation time. For larger units, a separate base is used. EPIC provides installation drawings, on-site guidance and commissioning support for overseas projects.

Q10: What is the lead time and how do I get a quotation?

Standard lead time is typically 30–60 days depending on model and order quantity. To get a quotation, send us your ore type, feed size, target particle size, required capacity (t/h), site conditions and power supply. Our engineering team will recommend the right model and provide a full quotation.

Q11: Can overseas clients inspect the mill before shipment?

Yes. EPIC welcomes overseas clients to visit its Qingdao production base for on-site factory inspection and equipment acceptance before shipment. Clients can review the grate plate discharge system, grooved annular liner, oil mist lubrication system, cylinder welding and bearing assembly. Technical talks cover ore type, feed size, target particle size, throughput, installation guidance and long-term maintenance.

Q12: Why choose EPIC's Grate Ball Mill over other suppliers?

EPIC has decades of specialized engineering in grinding mill design, uses durable materials and strict quality control, and provides consultation, installation guidance and after-sales service. The Energy Saving Grate Ball Mill combines rolling bearing technology, grooved annular liner design and oil mist lubrication to deliver 20–30% energy savings, up to 160 t/h capacity and reliable long-term performance for coarse ore grinding.

Summary of Benefits

· High-efficiency grinding with reduced energy consumption.

· Robust, durable design for long-term operation.

· Easy maintenance and reliable lubrication system.

· Flexible sizing options to meet operational requirements.

· Ideal choice for global buyers seeking cost-effective, high-quality mineral processing equipment.

EPIC Grate Ball Mill represents the culmination of advanced grinding technology, superior engineering, and global export expertise. Whether upgrading existing plants or building new mineral processing lines, this ball mill ensures maximum output, energy efficiency, and long-term operational reliability. Welcome to contact us!
